ID
1360506
$ 649.87
1-2 weeks delivery time
-
+
The Barton 44030 is a sliding pin Boomstrut designed for boats from 7.5 to 9 m (25–30 ft) with a maximum boom tip weight of 15 kg. Featuring flexible fibreglass rods and anodised fittings, it works alongside a kicker or rope vang to provide constant upward boom support, improving sail shape and preventing uncontrolled boom drop when the sail is lowered.
- Description
- Ask a Question
-
Barton 44030 – Sliding Pin Boomstrut Size 44030, 7.5–9m Boats, Max Tip Load 15kg, White Rods

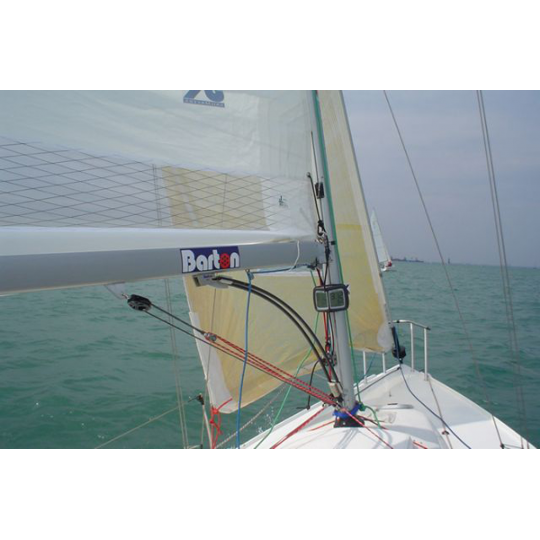

The Barton 44030 Sliding Pin Boomstrut is a performance boom support system engineered for yachts between 7.5 and 9 metres (25–30 ft). Designed to work in conjunction with a conventional kicker or rope vang, it delivers a controlled upward force to maintain proper sail shape and boom positioning.

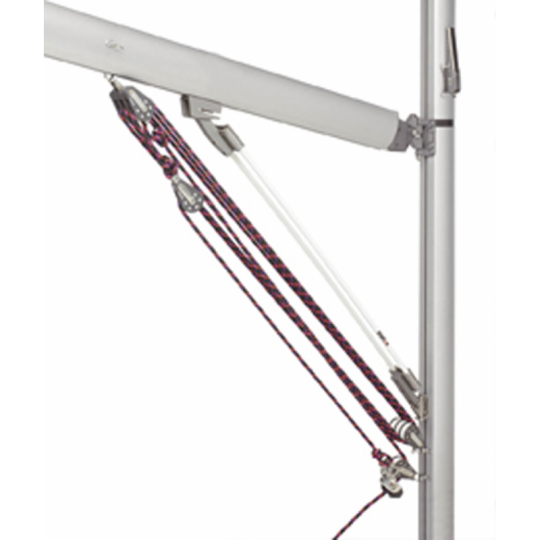

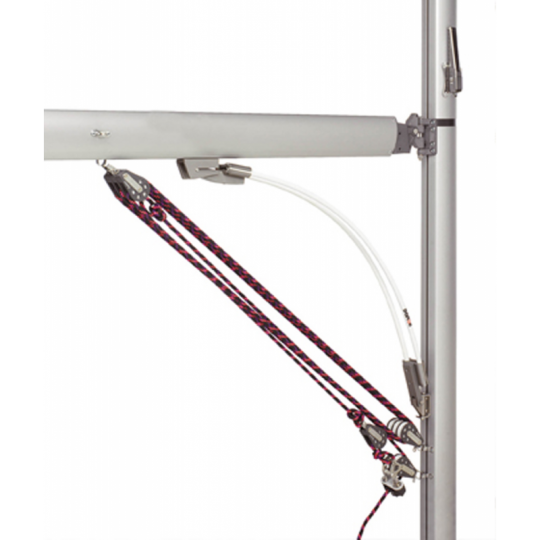

At the core of the system are two flexible coated fibreglass rods that act as a spring mechanism. When the boom is pulled down, the rods flex; when released, they return to their original position, lifting and supporting the boom. This ensures that the boom remains safely elevated when the sail is lowered or the topping lift is not in use. :contentReference[oaicite:0]{index=0}
Key Features
- Sliding pin Boomstrut for boats 7.5–9 m (25–30 ft)
- Provides constant upward boom support
- Flexible fibreglass rod spring system
- Maintains sail shape in light wind conditions
- Prevents boom from dropping when sail is lowered
- Maintenance-free design with no sliding friction parts
- Lightweight and low-profile construction
- Compatible with aluminium, carbon fibre, and wooden spars

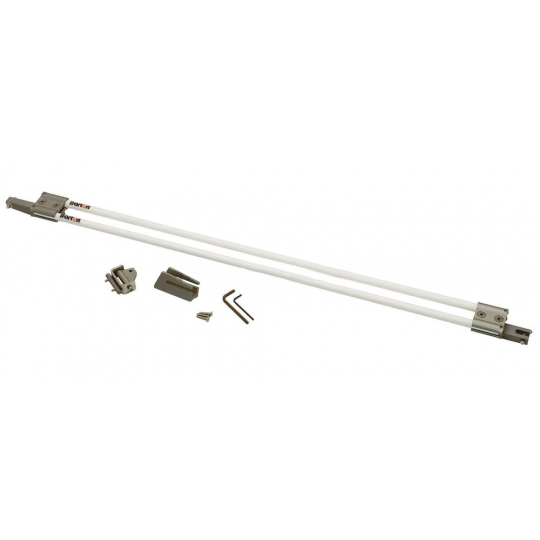

- Supplied with anodised boom and mast fittings
Technical Specifications
Part Number 44030 Product Type Sliding Pin Boomstrut Recommended Boat Length 7.5–9 m (25–30 ft) Maximum Boom Tip Weight 15 kg (33 lbs) Pin-to-Pin Length 1180 mm Maximum Rod Reduction 150 mm Maximum Travel (Flex) 300 mm Max Stroke at Full Adjustment 150 mm Maximum Downward Force 185 kg (407 lbs) Material Fibreglass rods with anodised aluminium and stainless steel fittings Finish White rods, anodised fittings
Applications
- Boom support systems for cruising and racing yachts
- Sail trim and boom height control
- Replacement for topping lift systems
- Integration with kicker or rope vang systems
- Suitable for slab reefing systems and stack packs
The Barton Boomstrut system provides safe, efficient, and maintenance-free boom control, reducing rigging complexity while improving sailing performance and onboard safety.
-
