ID
1360512
$ 910.72
1-2 weeks delivery time
-
+
The Barton 44040 is a sliding pin Boomstrut designed for boats from 10.5 to 12 m (30–40 ft) with a maximum boom tip weight of 23 kg. Featuring flexible fibreglass rods and anodised fittings, it works alongside a kicker or rope vang to provide constant upward boom support, maintaining sail shape and preventing uncontrolled boom drop when the sail is lowered.
- Description
- Ask a Question
-
Barton 44040 – Sliding Pin Boomstrut Size 44040, 10.5–12m Boats, Max Tip Load 23kg, White Rods

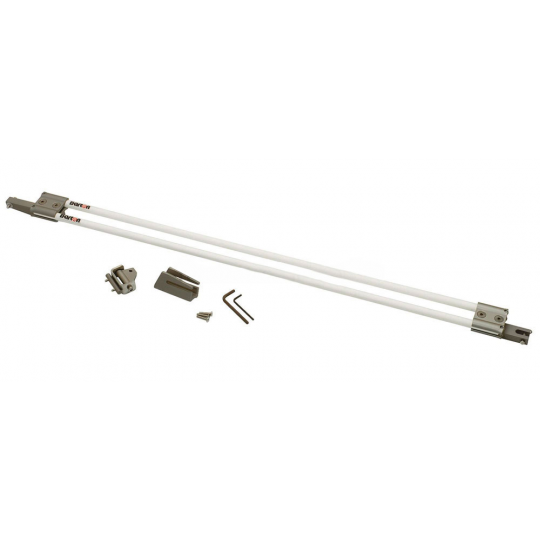

The Barton 44040 Sliding Pin Boomstrut is a heavy-duty boom support system designed for larger yachts between 10.5 and 12 metres (30–40 ft). It operates in conjunction with a conventional kicker or rope vang, delivering consistent upward force to maintain proper boom height and sail efficiency.

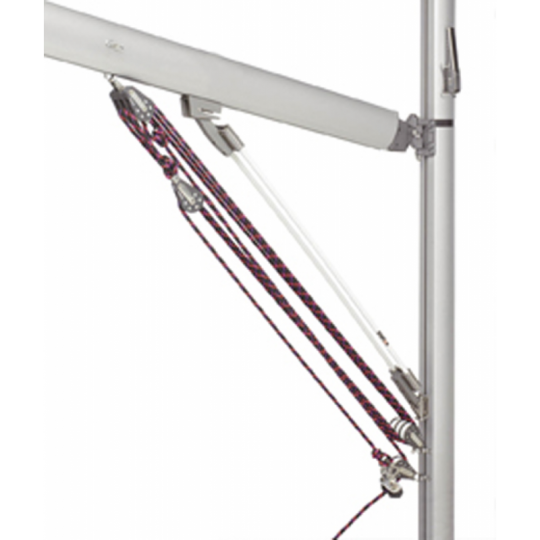

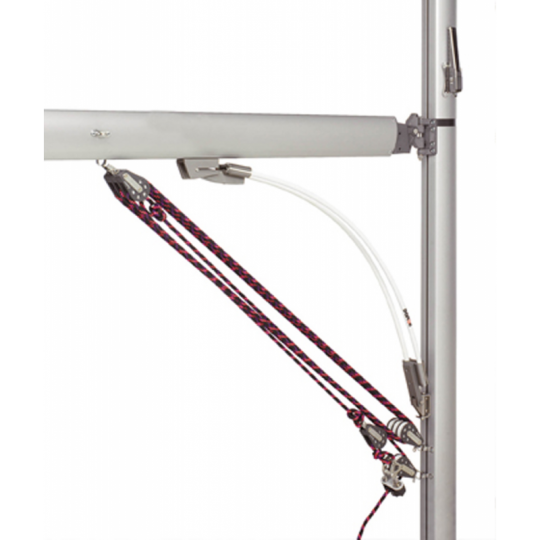

The system incorporates two flexible coated fibreglass rods that act as a spring mechanism. When downward load is applied via the vang, the rods flex; when released, they return to their original shape, lifting and supporting the boom. This ensures that the boom remains safely elevated when the sail is lowered or the topping lift is removed. :contentReference[oaicite:0]{index=0}
Key Features
- Sliding pin Boomstrut for boats 10.5–12 m (30–40 ft)
- Provides constant upward boom support
- Flexible fibreglass rod spring system
- Maintains sail shape in light wind conditions
- Prevents boom from dropping when sail is lowered
- Maintenance-free design with no sliding friction parts
- Lightweight and low-profile construction
- Compatible with aluminium, carbon fibre, and wooden spars
- Supplied with anodised boom and mast fittings
Technical Specifications
Part Number 44040 Product Type Sliding Pin Boomstrut Recommended Boat Length 10.5–12 m (30–40 ft) Maximum Boom Tip Weight 23 kg (51 lbs) Pin-to-Pin Length 1450 mm Maximum Rod Reduction 150 mm Maximum Travel (Flex) 400 mm Max Stroke at Full Adjustment 200 mm Maximum Downward Force 270 kg (594 lbs) Material Fibreglass rods with anodised aluminium and stainless steel fittings Finish White rods, anodised fittings
Applications
- Boom support systems for larger cruising and performance yachts
- Sail trim and boom height control
- Replacement for topping lift systems
- Integration with kicker or rope vang systems
- Suitable for slab reefing systems and stack packs
The Barton Boomstrut range provides robust, maintenance-free boom support, enhancing onboard safety while improving sail handling efficiency and reducing rigging complexity on larger vessels.
-
