ID
1360500
$ 553.68
1-2 weeks delivery time
-
+
The Barton 44010 is a sliding pin Boomstrut designed for boats up to 6 m (20 ft) with a maximum boom tip weight of 6.3 kg. Featuring flexible fibreglass rods and anodised fittings, it works alongside a kicker or rope vang to provide controlled upward boom support, maintaining sail shape and preventing the boom from dropping when the sail is lowered.
- Description
- Ask a Question
-
Barton 44010 – Sliding Pin Boomstrut Size 44010, Up to 6m Boats, Max Tip Load 6.3kg, White Rods
The Barton 44010 Sliding Pin Boomstrut is a lightweight boom support system designed for sailing yachts up to 6 metres (20 ft). Engineered to work in conjunction with a traditional kicker or rope vang, it provides consistent upward force to maintain optimal sail shape and boom position.

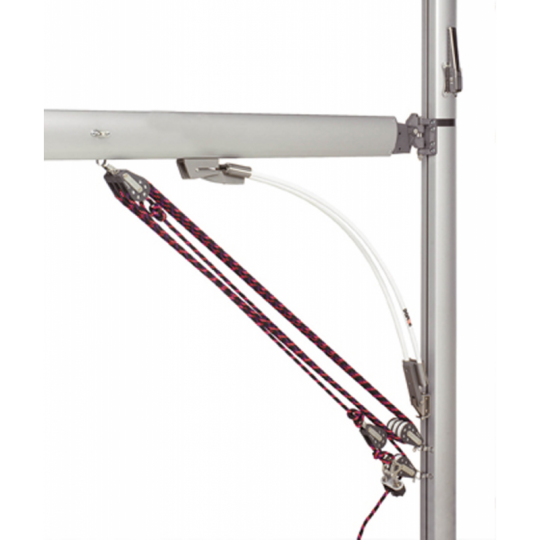

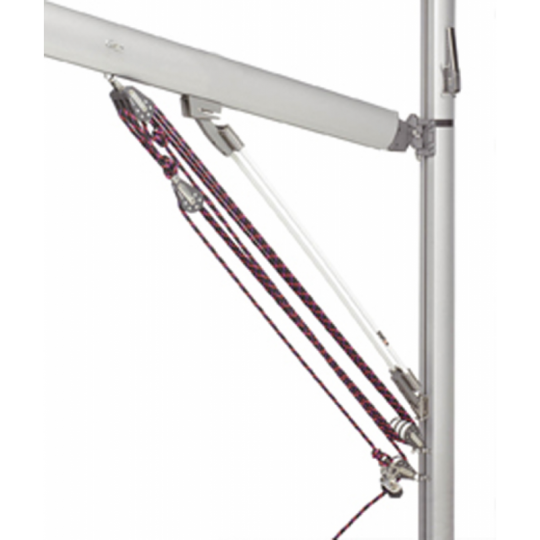

The system features two flexible coated fibreglass rods acting as a patented spring mechanism. When the boom is pulled down, the rods flex; when released, they return to their original shape, lifting and supporting the boom. This ensures that the boom remains safely elevated even when the sail is lowered or the topping lift is removed. :contentReference[oaicite:0]{index=0}
Key Features
- Sliding pin Boomstrut system for boats up to 6 m (20 ft)
- Supports boom with constant upward force
- Flexible fibreglass rod spring system
- Prevents boom from dropping when sail is lowered
- Works with existing kicker or rope vang
- Maintenance-free design with no sliding friction parts
- Lightweight and low-profile construction
- Compatible with aluminium, carbon fibre, and wooden spars
- Quick installation using existing mast luff groove where possible
Technical Specifications

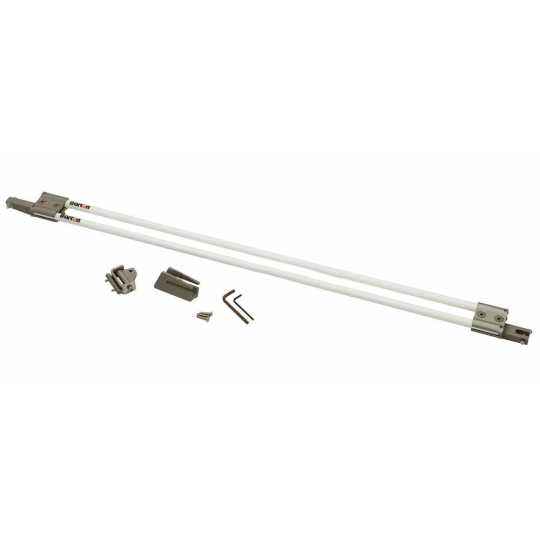

Part Number 44010 Product Type Sliding Pin Boomstrut Recommended Boat Length Up to 6 m (20 ft) Maximum Boom Tip Weight 6.3 kg (14 lbs) Pin-to-Pin Length 960 mm Maximum Rod Reduction 150 mm Maximum Travel (Flex) 300 mm Max Stroke at Full Adjustment 150 mm Maximum Downward Force 90 kg (198 lbs) Weight 1190 g Dimensions 1000 × 62 × 42 mm Material Fibreglass rods with anodised aluminium and stainless steel fittings Finish White rods, anodised fittings
Applications
- Boom support systems for small sailing yachts
- Sail shape control in light wind conditions
- Replacement for topping lift systems
- Integration with kicker or rope vang systems
- Training boats, dinghies, and cruising yachts
The Barton Boomstrut range is designed to provide safe, reliable, and maintenance-free boom support, eliminating the need for topping lifts while improving sail efficiency and onboard safety.
-
