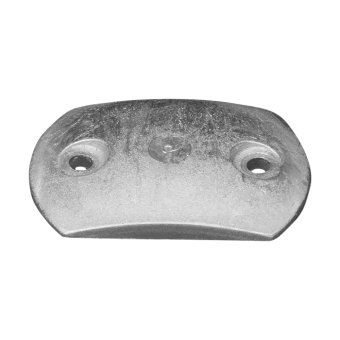

Tecnoseal Renault Marine Zinc Convex Plate Anode Ø80 mm

ID 1405040

$ 20.82

1-2 weeks delivery time

- +

Add to cart

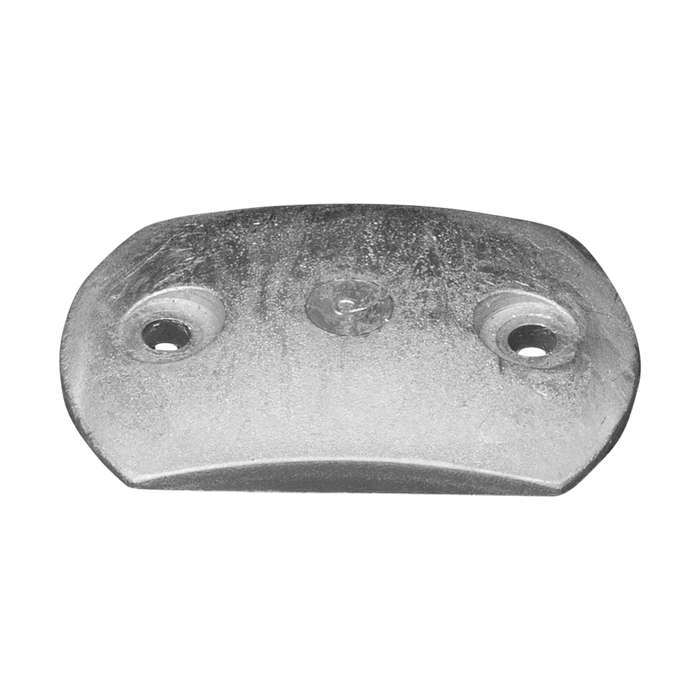

The Tecnoseal 01804 is a zinc convex plate anode designed for Renault Marine engines, helping protect compatible metallic components against galvanic corrosion. Its curved plate body features two recessed mounting holes with a diameter (Ø1) of 6.50 mm. The anode measures 54 mm along dimension a, 50 mm between mounting hole centres (i) and 80 mm along the curved profile (Ø). It weighs 0.16 kg (0.35 lbs) and provides a replaceable sacrificial component for marine engine corrosion protection.

Description
Ask a Question

Tecnoseal Renault Marine Zinc Convex Plate Anode Ø80 mm

The Tecnoseal 01804 is a zinc sacrificial convex plate anode designed for Renault Marine engines. Its curved profile and two mounting holes provide a replaceable corrosion protection component for compatible marine engine installations.

The anode features a convex plate body with two recessed fixing holes. It measures 54 mm along dimension a, with 50 mm mounting hole centre spacing (i), an 80 mm curved diameter (Ø) and 6.50 mm fixing hole diameter (Ø1). The anode weighs 0.16 kg (0.35 lbs).

Technical Specifications

Manufacturer	Tecnoseal
Tecnoseal Part Number	01804 (Osculati 43.600.05)
Product Type	Convex Plate Anode
Material	Zinc
Engine Brand	Renault Marine
Weight	0.16 kg (0.35 lbs)
Dimension a	54 mm (2.13 in)
Mounting Hole Spacing (i)	50 mm (1.97 in)
Curved Diameter (Ø)	80 mm (3.15 in)
Mounting Hole Diameter (Ø1)	6.50 mm (0.26 in)

Compatibility and References

Engine Brand: Renault Marine
Application: Marine Engine Corrosion Protection
Tecnoseal Part Number: 01804

Key Features

Zinc sacrificial convex plate anode for Renault Marine engines.
Helps protect compatible metallic components against galvanic corrosion.
Curved plate design with two recessed mounting holes.
Dimension a: 54 mm.
Mounting hole centre spacing: 50 mm.
Curved diameter: 80 mm.
Mounting hole diameter: 6.50 mm.
Weight: 0.16 kg (0.35 lbs).
