Tecnoseal Renault Marine Pencil Anode Ø15 x 26 mm with Optional Brass Plug M18x1.5

Name: Tecnoseal Renault Marine Pencil Anode Ø15 x 26 mm with Optional Brass Plug M18x1.5
SKU: Tecnoseal 02090

ID 1405036

$ 35.41

1-2 weeks delivery time

Type:

Brass Plug Only
Zinc Anode Only
Zinc + Brass Plug

Item:

30 g
60 g
40 g

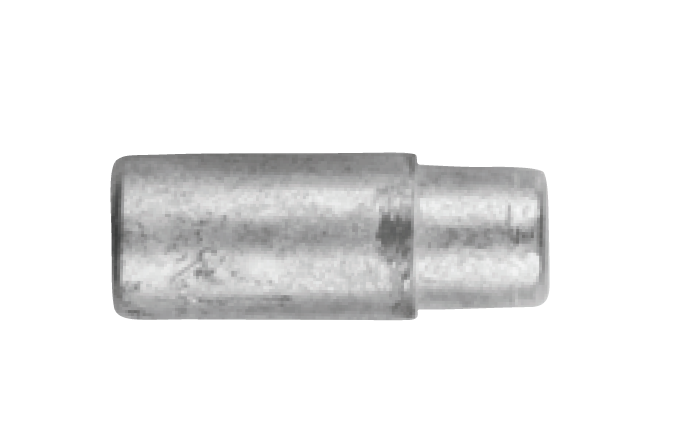

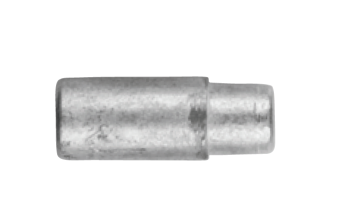

The Tecnoseal 02090 Series includes a zinc pencil anode, a complete zinc anode with brass plug and a separate brass plug for Renault Marine engine coolers. The zinc rod (02090) measures 26 mm in length and 15 mm in diameter, with an additional 10 mm section and a 12 mm dimension (b). The complete assembly (02090T) combines the zinc rod with an M18x1.5 threaded brass plug featuring a 24 mm hex head. The brass plug is also available separately as 02090TP. Weights are 0.03 kg for the zinc rod, 0.06 kg for the complete assembly and 0.04 kg for the brass plug. These configurations allow replacement of the sacrificial anode, the mounting plug or both components together.

Description
Ask a Question

Tecnoseal Renault Marine Pencil Anode Ø15 x 26 mm with Optional Brass Plug M18x1.5

The Tecnoseal 02090 Series includes replacement zinc pencil anodes and brass mounting plugs for Renault Marine engine coolers. The zinc anode helps protect compatible metallic cooling system components against galvanic corrosion, while the threaded brass plug provides the mounting connection.

Three configurations are available: a zinc anode only (02090), a complete zinc anode and brass plug assembly (02090T), and a brass plug only (02090TP). The zinc rod measures 26 mm in length and 15 mm in diameter. The plug features an M18x1.5 external thread and a 24 mm hex head.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	02090
Product Type	Pencil Anode and Brass Plug
Engine Brand	Renault Marine
Application	Engine Cooler
Anode Material	Zinc
Plug Material	Brass
Zinc Rod Length (l)	26 mm (1.02 in)
Additional Length (l1)	10 mm (0.39 in)
Zinc Rod Diameter (Ø)	15 mm (0.59 in)
Dimension b	12 mm (0.47 in)
Brass Plug Thread (a)	M18x1.5
Brass Plug Hex Head (c)	24 mm (0.94 in)

Available Configurations

Tecnoseal Code	Configuration	Weight
02090	Zinc Anode Only	0.03 kg (0.07 lbs)
02090T (Osculati 43.560.00)	Zinc Anode with Brass Plug	0.06 kg (0.13 lbs)
02090TP	Brass Plug Only	0.04 kg (0.09 lbs)

Product Configurations

Tecnoseal 02090 – Zinc Pencil Anode Only

The Tecnoseal 02090 is a replacement zinc rod for Renault Marine engine coolers, supplied without the brass mounting plug.

Material: Zinc
Rod Length (l): 26 mm
Additional Length (l1): 10 mm
Rod Diameter (Ø): 15 mm
Dimension b: 12 mm
Weight: 0.03 kg (0.07 lbs)
Brass Plug: Not included

Tecnoseal 02090T – Zinc Pencil Anode Complete with Brass Plug

The Tecnoseal 02090T combines the zinc pencil anode with a brass mounting plug featuring an M18x1.5 external thread.

Materials: Zinc and Brass
Rod Length (l): 26 mm
Additional Length (l1): 10 mm
Rod Diameter (Ø): 15 mm
Plug Thread (a): M18x1.5
Dimension b: 12 mm
Hex Head Size (c): 24 mm
Weight: 0.06 kg (0.13 lbs)
Brass Plug: Included

Tecnoseal 02090TP – Brass Plug Only

The Tecnoseal 02090TP is a replacement brass mounting plug for the 02090 pencil anode series. It is supplied without the zinc rod.

Material: Brass
External Thread (a): M18x1.5
Dimension b: 12 mm
Hex Head Size (c): 24 mm
Weight: 0.04 kg (0.09 lbs)
Zinc Anode: Not included

Compatibility and References

Engine Brand: Renault Marine
Application: Marine Engine Cooler
Zinc Anode Only: Tecnoseal 02090
Complete Assembly: Tecnoseal 02090T
Brass Plug Only: Tecnoseal 02090TP
Additional Reference: Tecnoseal 02010TP

Key Features

Replacement pencil anode and brass plug components for Renault Marine engine coolers.
Three available configurations: zinc rod, complete assembly or brass plug only.
Zinc rod helps protect compatible cooling system components against galvanic corrosion.
Zinc rod dimensions: Ø15 x 26 mm.
Brass plug with M18x1.5 external thread.
24 mm hex head on the brass mounting plug.
Allows individual replacement of the zinc rod or brass plug.
Complete assembly available as Tecnoseal 02090T.
