ID
1172914
$ 180.26
1-2 weeks delivery time
-
+
The Whale Watermaster FW1225 automatic pressure pump is a 24V DC water pressure unit rated at 45 PSI (3 bar) with a maximum output of 11.5 L/min (3 GPM) and an automatic pressure switch cut-out at 3 bar. It is self-priming up to 3 m, can run dry without damage, and features a fully sealed motor housing with IP65-rated electronics for quiet operation and supply for up to four users. Supplied with an inlet strainer/suction filter and connection options including Whale Quick Connect WX15 (snap-in) ports, 1/2 inch external threaded ports, and 13 mm (1/2 inch) hose ports; amperage is 3.5A with a recommended 5A fuse, and dimensions are 209 x 179 x 125 mm.
- Description
- Ask a Question
-

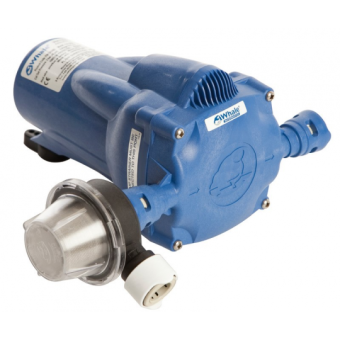

Watermaster FW1225 Automatic Water Pressure Pump
The Whale FW1225 is a compact automatic pressure pump designed to deliver consistent water pressure in a range of water systems. It supports operation in challenging conditions, including dry running and use in both fresh and salt water, and is supplied with inlet filtration and multiple plumbing connection options.
Features
- Self-priming up to 3 m
- Runs dry without damage
- Automatic pressure switch cut-out at 3 bar (45 PSI)
- Quiet operation
- Fully sealed motor housing
- Integrated electronics rated IP65
- Designed for performance for up to four users
- Suitable for both salt and fresh water
- Supplied with suction filter / inlet strainer
Technical Specifications

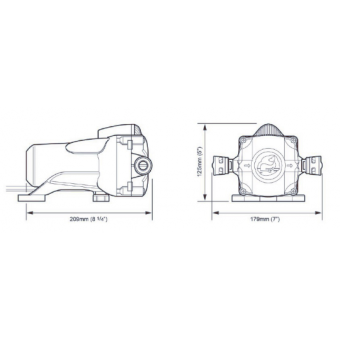

Brand Whale Manufacturer Number FW1225 Whale Reference 71986 Forniture Nautiche Italiane Number 1603053 Article Number 17540224 EAN 766478952387 Product Portfolio Water Pressure Systems Voltage 24V DC Maximum Output 11.5 L/min (3 GPM) Pressure / Cut-Off Pressure 3 bar (45 PSI) Self-Priming Up to 3 m Current Draw 3.5A Recommended Fuse 5A Electronics Rating IP65 Connections Whale Quick Connect WX15 (snap-in) ports; 1/2 inch external threaded ports; 13 mm (1/2 inch) hose ports; compatible with 15 mm quick connect plumbing or 1/2 inch threaded hose connections Included Items 1 inlet strainer (suction filter), 2 x 1/2 inch external threaded ports, 2 x 13 mm (1/2 inch) hose ports Dimensions (L x W x H) 209 x 179 x 125 mm Shipping Weight 2.50 kg Standards ISO8846, ISO10133
Product Details
- Designed for reliable water pressure delivery in various applications
- Protection-focused construction with sealed motor housing and integrated electronics
-
