ID
1172912
$ 175.81
1-2 weeks delivery time
-
+
The Whale Watermaster automatic pressure pump is a 12V DC diaphragm unit rated for 11.5 L/min flow and 30 PSI (2 bar) cut-out pressure, with an automatic pressure switch for quiet operation. It is self-priming up to 3 m, supports a maximum discharge head of 20 m, and can run dry without damage. The pump has a fully sealed motor housing with IP65-rated electronics, is suitable for fresh and salt water, and is supplied with an inlet strainer (suction filter); connection options include 15 mm Whale female quick connect, 13 mm (1/2 inch) hose, and 1/2 inch NPT fittings. Dimensions are 209 x 179 x 125 mm, electrical draw is 6 A with a 7.5 A fuse, and shipping weight is 2.50 kg.
- Description
- Ask a Question
-
Whale Watermaster FW1214 Automatic Water Pressure Pump
The Whale FW1214 Watermaster is a 12V diaphragm pressure pump for marine and recreational water systems, designed to provide automatic, steady water delivery to multiple outlets. It is built for durable operation in both fresh and salt water environments and includes inlet filtration to help protect the pump from debris.
Technical Specifications

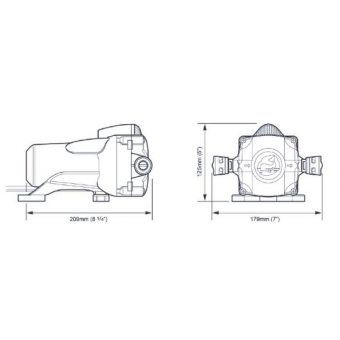

Brand Whale Model P3 FW1214, FW1214B Article Number 17540221 Manufacturer Number FW1214 Whale Number 71984 FNI Product Number 1603051 EAN 766478946928 Voltage 12V DC Current Draw 6 A Fuse 7.5 A Cut-Out Pressure 30 PSI / 2 bar Flow Rate 11.5 L/min (3 US GPM) Flow Rate (at 1 m Head) 11.75 L/min (3.1 US GPM) Maximum Discharge Head 20 m (66 ft) Self-Priming Up to 3 m (9.8 ft / 10 ft) IP Rating IP65 Hose Size 13 mm / 1/2 inch Inlet/Outlet Fittings 15 mm Whale female quick connect; 13 mm (1/2 inch) ID hose; 1/2 inch NPT Minimum Wire Size 1.5 mm² (16 AWG) Dimensions (L x W x H) 209 x 179 x 125 mm Shipping Weight 2.50 kg Country of Origin United Kingdom Warranty 2 years Accumulator Recommended Yes Standards ISO8846 and ISO10133 Product Portfolio Water Pressure Systems Supplied With Strainer (inlet strainer); 2 x 1/2 inch external threaded ports; 2 x 13 mm (1/2 inch) hose ports
Compatibility
- 15 mm quick connect plumbing
- 15 mm Whale female quick connect (WX15)
- 13 mm (1/2 inch) hose connection
- 1/2 inch external threaded ports
- 1/2 inch NPT
Features
- Automatic pressure switch for on-demand operation
- Quiet automatic running
- Self-priming up to 3 m
- Dry-run capable (runs dry without damage)
- IP65-rated electronics and fully sealed motor housing
- Suitable for fresh and salt water use
- Includes an inlet strainer (suction filter) to help block debris
- Rotatable mounting feet for installation flexibility
- EMC compliant and CE marked
Product Details
The pump housing is specified as glass-filled polypropylene and polybutylene terephthalate (PBT), with nitrile seals and stainless steel fasteners. The diaphragm, valves, and feet are made from monprene material.
-
