ID
1172913
$ 175.80
1-2 weeks delivery time
-
+
The Whale Watermaster FW1215 automatic pressure diaphragm pump is a 12V DC unit rated for 11.5 L/min flow with a 45 PSI (3.1 bar) cut-out pressure for fresh or salt water systems. It includes an automatic pressure switch, silent operation, self-priming up to 3 m, dry-run capability, a fully sealed motor housing, and IP65-rated electronics. Supplied with an inlet strainer (suction filter) and fittings for 15 mm quick connect plumbing and 13 mm (1/2 inch) hose or 1/2 inch threaded connections; it is suitable for 3–4 outlets and uses 6A with a 7.5A fuse. Dimensions are 209 x 179 x 125 mm, shipping weight is 2.50 kg, and specified materials include a glass-filled polypropylene/PBT body, nitrile seals, stainless steel fasteners, and monprene feet, diaphragm, and valves.
- Description
- Ask a Question
-

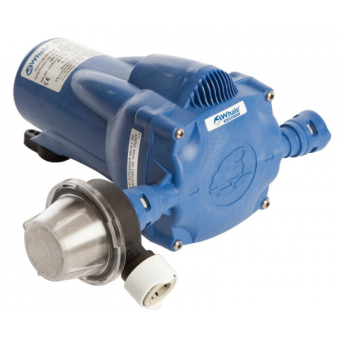

Watermaster FW1215 Automatic 12V Pressure Water Pump
The Whale FW1215 Watermaster is an automatic pressure diaphragm pump designed to provide dependable water flow for onboard fresh or salt water systems. It is built for multi-outlet domestic water use and integrates protective sealing and electronic protection for reliable operation in demanding environments.
Technical Specifications

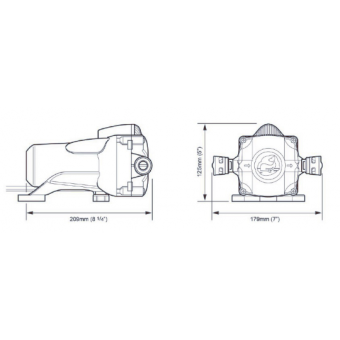

Brand Whale Series Watermaster Model P3 FW1215 Product Portfolio Water Pressure Systems Pump Type Electrically operated diaphragm pump Voltage 12V DC Flow Rate 11.5 L/min (3 US GPM) Pressure Cut-Out 45 PSI / 3.1 bar Self-Priming Up to 3 m (9.8 ft) Maximum Discharge Head 20 m (66 ft) Current 6A Fuse 7.5A IP Rating IP65 Wire Size Minimum 1.5 mm² (16 AWG) Hose Size 13 mm / 1/2 inch Inlet/Outlet Fittings 15 mm Whale female quick connect; 13 mm (1/2 inch) ID hose; 1/2 inch NPT; 1/2 inch male thread Dimensions (L x W x H) 209 x 179 x 125 mm Shipping Weight 2.50 kg Country of Origin United Kingdom Warranty 2 years Compliance EMC compliant; CE marked Standards ISO 8846; ISO 10133 Identifiers Whale: 71985; Forniture Nautiche Italiane: 1603052; EAN: 766478946966; Article number: 17540222
Compatibility
- Replacement for Whale Fresh IC series
Features
- Automatic pressure switch for on-demand operation
- Self-priming up to 3 m
- Dry-run safe operation
- Fully sealed protective motor housing with IP65-rated electronics
- Silent operation with smooth water flow
- Rotatable mounting feet for easier installation
- Suitable for 3–4 outlets
Product Details
- Supplied with: inlet strainer (suction filter); 2 x 1/2 inch external threaded ports; 2 x 13 mm (1/2 inch) hose ports
- Materials: glass-filled polypropylene and PBT pump body; nitrile seals; stainless steel fasteners; monprene feet, diaphragm, and valves
- Connections: compatible with 15 mm quick connect plumbing and 1/2 inch threaded hose connections
-
