ID
1262142
$ 171.88
1-2 weeks delivery time
-
+
The Rule RM800B fully automatic 12V DC submersible bilge pump provides a rated output of 3028 liters per hour and uses an integrated electronic water sensor with a 3-position switch panel. It starts automatically at a 6 cm water level and includes a backup function that switches to a 2.5-minute check cycle if the sensor is contaminated or flow is blocked. The unit includes a removable strainer, ventilated housing, thermal protection, and a non-return valve (compatible only with straight hose nozzles), with 19 mm hose connection and 3/4 inch and 1 inch thread sizes.
- Description
- Ask a Question
-

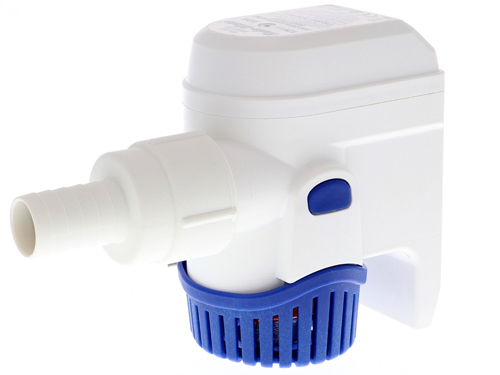

Rule RM800B Automatic Submersible Bilge Pump
The Rule RM800B is a fully automatic bilge pump for 12V systems, designed to remove bilge water using an integrated electronic sensing device. It is built for reliable automatic operation and includes backflow prevention plus protective control logic to help maintain safe pumping when the sensor is fouled or the pump is not moving water.
Features
- Integrated sensor for automatic operation
- Automatic start at 6 cm water level via built-in sensor
- Backup function: switches to computer-controlled operation after 2.5 minutes if the sensor is contaminated
- Detects blocked flow and switches to computer-controlled mode automatically
- Built-in programming checks for water every 2.5 minutes when not pumping water (air-bound or sensor fouled)
- Ventilated housing to help prevent air locking
- Thermal protection built in
- Strong snap-lock attachment for installation
- Quiet operation with spark-free performance
- Silicone-coated power cable
- Removable strainer / quick-release inlet strainer for cleaning
- Non-return valve to help prevent backflow into the bilge (compatible only with straight hose nozzles)
- Threaded hose nozzles for installation and maintenance
- Low power consumption / low amp draw
- Ignition protected
Technical Specifications
Supplier Code RM800B Model RM800B Order Number 00304582 Barcode 042237106223 Voltage 12 Volts (12V DC) Rated Yield 3028 liters per hour Maximum Output (Also Listed) 56 liters/minute (12 gallons/minute) Capacity at Zero Discharge Head (Also Listed) 3,562 l/h (942 GPH) Capacity at 2 m Head (Also Listed) 1,575 l/h (416 GPH) Maximum Discharge Head 3 meters Automatic Start Level (Also Listed) 6 cm water level On/Off Levels (Also Listed) On at approximately 2-1/2 inches; off at 5/8 inch Hose Connection Diameter 19 mm Connections (Also Listed) 25 mm (1 inch) NPSM thread or 19 mm (3/4 inch) ID hose Thread Sizes 3/4 inch and 1 inch Power Consumption (Also Listed) 3 Ah Power Consumption (Also Listed) 60 Watts Maximum Amperage (Also Listed) 3.7 A Fuse Size 5 A Dimensions (HxWxD) 112 x 74 x 163 mm Dimensions (Also Listed) 112 mm high, 130 mm long, 73 mm wide Dimensions (Also Listed) 88 mm width x 73 mm depth x 112 mm height Weight 0.48 kg (approx.); 0.68 kg packed (approx.) Shipping Weight 1.00 kg Mounting Orientation (Also Listed) Can be mounted horizontally or vertically Operating Temperature Range (Also Listed) -10 C to 50 C (14 F to 122 F) Noise Level (Also Listed) 55 dB (at 1 meter distance) Certifications (Also Listed) CE, RoHS, and UL compliant Product Portfolio Submersible bilge pumps
Compatibility
- Alternate to RuleMate RM750
- Alternate to RuleMate RM750A
Product Details
Note: The included non-return valve is compatible only with straight hose nozzles.
-
