The Rule IL280P-24 slimline centrifugal pump is a 24V DC inline/submersible unit for marine and general-purpose fluid transfer, suitable for fresh water (hot and cold), seawater, antifreeze, and diesel. It delivers up to 18 L/min (1080 L/h) and up to 1 bar (also listed as up to 0.96 bar / 14 PSI), with a 13 mm (1/2 inch) hose connection, a 4 m cable with crocodile clips, and a clip-on, easy-clean filter. The pump is rated for continuous operation/light continuous duty but should not be run dry for extended periods; motor life is approximately 150 hours, and dimensions are 165 mm length x 38 mm diameter.
- Description
- Ask a Question
-

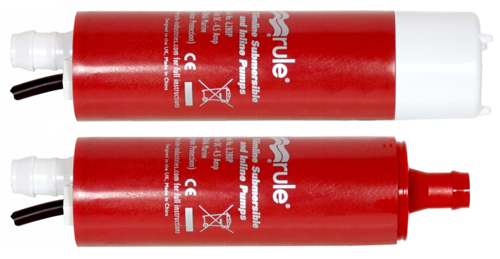

Rule IL280P-24 Slimline Centrifugal Inline/Submersible Pump
The Rule IL280P-24 is a compact, portable slimline pump designed for inline or submersible use in marine and general fluid-transfer tasks. It is intended for transferring water and diesel and is also listed as suitable for liquids such as seawater and antifreeze for common boat and land-based applications.
Technical Specifications
Voltage 24V DC Flow Rate 18 L/min (1080 L/h); also listed as 4 gallons/min Pressure Up to 1 bar (also listed as up to 0.96 bar); max pressure listed as 14 PSI (1 bar) Maximum Current 2.5 A Pump Type Centrifugal, inline/submersible Body Material Acetyl Hose Connection 13 mm (1/2 inch) hose connection Cable Length 4 m Cable Termination Crocodile clips Dimensions 165 mm length x 38 mm diameter Weight 0.28 kg (also listed as 0.48 kg; approx. 0.68 kg packed) Shipping Weight 1.00 kg Duty Rating Continuous operation rated / light continuous duty; do not run dry for extended periods Motor Life Approximately 150 operating hours Water Temperature Limit Up to 80 0C Diesel Temperature Limit Up to 40 0C Supported Liquids (Listed) Hot and cold fresh water, seawater, saltwater, antifreeze, diesel Order Number 00304565 Supplier Code IL280P-24 Barcode 042237109859 Product Portfolio General Purpose Pumps
Features
- Compact slimline design for inline or submersible installation
- Clip-on, easily cleaned filter
- Portable setup with a 4 m cable and crocodile clips
- Handles liquids listed as diesel and antifreeze
- Corrosion-resistant components (listed)
- Quick diesel transfer capability with no spillage (listed)
Product Details
- Typical applications listed include bilge pumping, washdown, refuelling, engine winterizing, vehicle washing, garden watering, deck shower, and deck wash.
- For inline installation, the filter can be unclipped to expose the inlet nozzle; connect a hose between the tank and nozzle, and fit the pump below the tank.
-
