The Rule IL280PK-24 portable centrifugal pump kit is a 24V inline or submersible transfer unit for fresh water, salt water, and diesel, with hot water capability up to 80°C and diesel up to 40°C. It delivers up to 18 L/min (1080 L/h / 280 GPH) and up to 0.96 bar, using a 13 mm (1/2 inch) hose connection, and includes a spray gun/nozzle, a 4 m layflat PVC/nitrile hose, and a 4 m power cable with battery clamps plus a detachable sieve/clip-on filter. The pump body is 165 mm long x 38 mm diameter, weighs 0.28 kg (shipping weight listed as 1.20 kg), and has an average motor life of approximately 150 hours with max current of 2.5 A at 24V; it is suitable for light continuous duty and should not be run dry for long periods.
- Description
- Ask a Question
-
Portable 24V Slimline Inline/Submersible Pump Kit
The Rule IL280PK-24 is a compact, portable centrifugal pump kit designed for transfer and flushing tasks in tight spaces. It can be used inline or submersible and is intended for moving fresh water, sea water, or diesel, with a detachable intake sieve for flexible setup.
Technical Specifications
Order Number 00304567 Supplier Code IL280PK-24 Barcode 042237109927 Pump Type Centrifugal Voltage 24 V Max Flow Rate 18 L/min (1080 L/h / 280 GPH) Max Pressure 0.96 bar Hose Connection 13 mm (1/2 inch) hose connection (inner diameter) Cable Length 4 m (with battery clamps) Max Current 2.5 A at 24 V Average Motor Life 150 operating hours Operating Mode Continuous operation (light duty); avoid running dry for long periods Media and Temperature Limits Fresh water / sea water up to 80 C; diesel up to 40 C Dimensions 165 mm length x 38 mm diameter Pump Weight 0.28 kg Shipping Weight 1.20 kg Product Portfolio General Purpose Pumps
Features
- Inline or submersible operation with a detachable sieve / clip-on, easy-to-clean filter
- Designed for hot and cold water transfer and diesel transfer
- Compact slimline format for installation and use in tight spaces

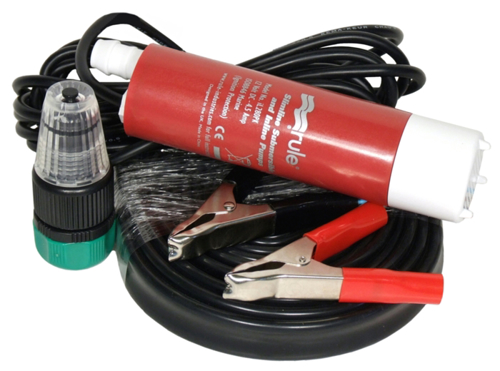

- Supplied as a kit with spray gun/nozzle, 4 m power cable with battery clamps, and 4 m layflat PVC/nitrile hose
Product Details
- Typical uses listed include emptying bilges in confined areas, water transfer, diesel transfer, deck showers, and general wash-down.
- For inline installation: unclip the filter to expose the inlet nozzle, connect a hose between the tank and nozzle, and fit the pump below the tank.
-
