The Rule IL200P-24 slimline centrifugal pump is a 24V DC inline or submersible transfer unit for fresh water, seawater, and diesel. It delivers up to 12.7 LPM (760 L/h) with a maximum working pressure of 0.76 bar, uses a 13 mm (1/2 inch) hose connection, and includes a detachable, easy-to-clean filter. The pump has a 1 m cable, draws up to 2.5A at 24V, is rated for short-lived/light continuous use, should not be run dry, and has an approximate motor life of 250 hours.
- Description
- Ask a Question
-

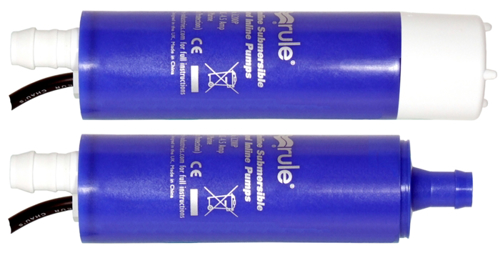

Slimline 24V Inline or Submersible Transfer Pump
The Rule IL200P-24 is a compact centrifugal pump designed for marine and portable use. It can be installed in-line or used submerged and is intended for transferring fresh water, seawater, and diesel, including tasks such as bilge emptying, refueling, deck washing, and fish bun aeration.
Features
- Inline or submersible use
- Detachable, easy-to-clean filter (clip-on)
- Compact slimline design for tight spaces
- Suitable for hot or cold water transfer and diesel transfer
- Should not be run dry
Technical Specifications
Supplier Code IL200P-24 Order Number 00304499 Barcode 042237109873 Voltage 24 Volts Pump Type Centrifugal Flow Rate 12.7 LPM (760 L/h) Maximum Working Pressure 0.76 bar Hose Connection 13 mm (1/2 inch) Cable Length 1 metre Length 165 mm Diameter 38 mm Weight 0.28 kg Operating Temperature Up to 80 C (water), up to 40 C (diesel) Max Current Draw 2.5A at 24V Motor Life Approximately 250 hours Recommended Working Time Short-lived Application Water transfer, diesel transfer, fish bun aerator
Product Details
For an in-line installation, unclip the filter to expose the inlet nozzle. Connect a hose between the tank and the nozzle, and fit the pump below the tank.
-
