The Rule 99B shower drain kit is a compact grey water drainage system rated at 12V with an output of 69 litres per minute. It uses automatic float switch operation and includes three inlet ports, a quick-release lid, and an easy-to-clean internal strainer. The unit measures 230 x 240 x 130 mm, has a maximum delivery head of 3 meters, uses a centrifugal Rule 1100 pump (spark-free), and weighs 1.58 kg; specified electrical protection includes a 7.5 amp fuse.
- Description
- Ask a Question
-

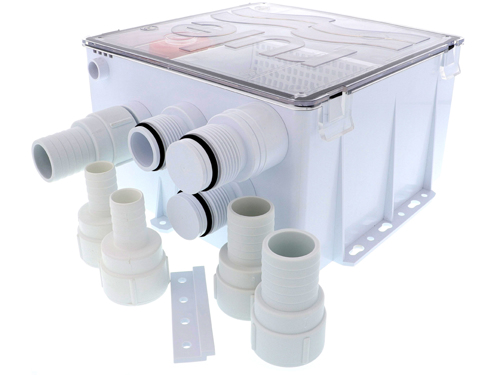

Rule 99B Shower Sump Drain System
The Rule 99B is a compact shower drain and grey water management unit designed to automatically pump away collected water. It is float-switch controlled to turn on as the box fills and shut off when emptied, and it is built for easy maintenance with a removable strainer and serviceable internal components.
Features
- Automatic operation via float switch (Rule Super Switch / non-mercury Rule-a-Matic float switch referenced)
- Multi-port design with three inlet ports for flexible hose configuration
- Quick-release lid and easy-to-clean internal strainer
- Clip-in, removable pump, strainer, and cover for cleaning and servicing
- Sealed clear screw-down cover
- Integral non-return valve to help prevent backflow
- Ignition protected
- Replaces Rule 99A
Technical Specifications
Order Number 00304597 Supplier Code 99B Barcode 042237106575 Model 99B Brand Rule Product Portfolio Electric Waste Water Pumps Voltage 12 Volts Output (Yield) 69 Liters per Minute (15 Gallons per Minute) Capacity (at 13.6V, Straight) Max 70 L/min Capacity (at 2 m Head) Max 52 L/min Maximum Delivery Head 3 m (Maximum Recommended Discharge Head) Pump Type Centrifugal (Rule 1100), Spark-Free Included Pump Rule 1100 Submersible Pump (1100 GPH referenced) Connections 19 mm, 25 mm, 29 mm (also referenced as 19 mm (3/4 inch), 25 mm (1 inch), 29 mm (1 1/8 inch) bore hose) Ports Included 3 x 19 mm (3/4 inch), 1 x 25 mm (1 inch), 1 x 29 mm (1 1/8 inch) inlet Dimensions 230 x 240 x 130 mm Additional Dimensions Reference Length approx. 21.5 cm (approx. 31.0 cm with ports) / Width approx. 23.9 cm / Height approx. 14.0 cm Packaged Dimensions 26.00 cm (L) x 14.00 cm (H) x 35.00 cm (W) Current Draw 4.7 A Fuse Size 7.5 A Product Weight 1.58 kg (approximately 2.08 kg when packed) Shipping Weight 2.00 kg
Product Details
Hose configuration: Compatible with 19 mm (3/4 inch), 25 mm (1 inch), or 29 mm (1 1/8 inch) bore hose for inlet and outlet, with straight or 90º elbow configurations referenced.
-
