The Rule 98B-24 shower drain system is a 24V DC automatic multi-port grey water sump unit with a centrifugal, spark-free Rule 800 submersible pump and a Rule-a-Matic non-mercury float switch. It delivers 50 L/min output with a maximum recommended discharge head of 2.5 m, includes an integral check (non-return) valve, and supports 19 mm, 25 mm, and 29 mm hose connections. The system features a sealed clear cover (polycarbonate lid) and removable pump, strainer, and float switch for tool-free maintenance, with overall dimensions of 230 x 240 x 130 mm and product weight of 1.58 kg.
- Description
- Ask a Question
-

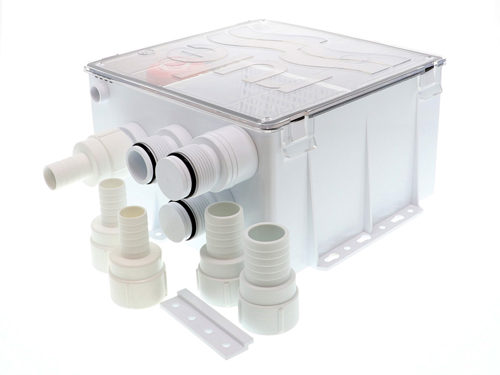

Rule 98B-24 Automatic Shower Sump Pump System
The Rule 98B-24 is a compact, automatic multi-port shower drain kit designed to collect and pump grey water from showers and other wet areas. It uses a float-switch-controlled sump box with a sealed clear cover to reduce splashes and simplify inspection, and it is built so the pump, strainer, and switch can be removed for quick maintenance.
Technical Specifications
Order Number 00304496 Supplier Code 98B-24 Barcode 042237106568 Model 98B-24 Voltage 24V DC Output 50 L/min (11 GPM) Maximum Delivery Head 2.5 m Capacity at 27V (Straight) Max 65 L/min Capacity at 2 m Head Max 36 L/min Pump Type Centrifugal (Rule 800), spark-free Included Pump Rule 800 submersible pump Control Rule-a-Matic float switch (non-mercury) Amperage 2A Fuse Size 4A Connections 19 mm, 25 mm, 29 mm Included Ports 3 x 19 mm (3/4 in), 1 x 25 mm (1 in), 1 x 29 mm (1 1/8 in) inlet Dimensions 230 x 240 x 130 mm Dimensions (Approx.) Length approx. 21.5 cm (approx. 31.0 cm with ports) / width approx. 23.9 cm / height approx. 14.0 cm Packaged Dimensions L: 26.00 x H: 14.00 x W: 35.00 cm Product Weight 1.58 kg Weight (Approx.) 1.60 kg (approx. 2.10 kg packed) Shipping Weight 2.00 kg Material High-impact plastic Cover / Lid Sealed clear screw-down cover; sealed polycarbonate lid Check Valve Yes, integral (non-return valve) Ignition Protected Yes Waterproof Rating IP67 Temperature Range -20 C to 60 C (-4 F to 140 F) Product Portfolio Electric waste water pumps Warranty 5-year warranty
Features
- Fully automatic operation: turns on when water rises and shuts off when water is removed
- Multi-port hose connection options: 19 mm, 25 mm, and 29 mm
- Sealed clear cover helps prevent splashes and supports easy inspection
- Tool-free maintenance with removable pump, float switch, and debris strainer
- Integral check (non-return) valve helps prevent backflow
- Ignition protected design for marine environments
Compatibility
- Replaces Rule 98A-24
- Replaces Rule 97A-24
Product Details
Designed for shower drainage on boats, yachts, and motor cruisers, this unit combines a sump box with a Rule 800 submersible centrifugal pump and Rule-a-Matic float switch for automatic grey water removal.
-
