The Rule 98B shower sump drainage kit is a 12V DC system for removing waste water from showers and basins using a Rule 800 submersible centrifugal pump with a Rule-a-Matic float switch for automatic operation. It is rated at 50 L/min (11 gallons/min) with a maximum discharge head of 2.5 m, supports 19 mm (3/4 inch), 25 mm (1 inch), or 29 mm (1 1/8 inch) hose connections, and features a clear sealed screw-down cover with removable pump and strainer for maintenance.
- Description
- Ask a Question
-

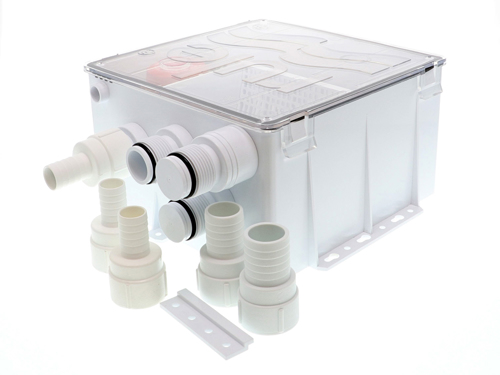

Rule 98B Automatic Shower Sump Drain Kit
The Rule 98B is a compact shower sump and drain box system designed to manage waste water from showers and basins. It uses a Rule 800 submersible centrifugal pump and a Rule-a-Matic float switch to start automatically when water rises and shut off after the water is removed, with an internal non-return valve to help prevent backflow.
Features
- Automatic operation via Rule-a-Matic float switch (non-mercury)
- Ignition protection
- Integral non-return valve / internal check valve to help prevent backflow
- Clear, sealed screw-down cover
- Removable pump, float switch, debris strainer, and cover for maintenance and cleaning
- Multi-port inlet with multiple hose size options
Technical Specifications
Model 98B Voltage 12V DC Output 50 L/min (11 gallons/min) Maximum Discharge Head 2.5 m Capacity (At 13.6V, Straight) Max 65 L/min Capacity (At 2 m Head) Max 36 L/min Pump Type Centrifugal (Rule 800), spark-free Amperage 4.3 A Fuse Size 5 A / 7.5 A Connections (Hose Sizes) 19 mm (3/4 inch), 25 mm (1 inch), 29 mm (1 1/8 inch) Included Ports 3 x 19 mm (3/4 inch), 1 x 25 mm (1 inch), 1 x 29 mm (1 1/8 inch) inlet Ports Configuration 1 inlet and 3 outlet ports Dimensions 230 x 240 x 130 mm Dimensions (Approx.) Length approx. 21.5 cm (approx. 31.0 cm with ports) / width approx. 23.9 cm / height approx. 14.0 cm Packaged Dimensions L 26.00 x H 14.00 x W 35.00 cm Product Weight 1.58 kg Shipping Weight 2.00 kg Packed Weight (Approx.) 2.08 kg Temperature Range -10°C to 50°C (14°F to 122°F) IP Rating IP68 Maximum Operating Pressure 3 bar (43.5 psi) Materials High-strength plastic body, corrosion-resistant components Warranty 1 year Installation Type Self-priming, automatic pump system Includes Rule 800 Submersible Pump; Rule-a-Matic float switch Order Number 00304495 Supplier Code 98B Barcode 042237106551 Product Portfolio Electric waste water pumps
Compatibility
- Replaces Rule 98A
- Replaces Rule 97A
Product Details
This shower drain kit is supplied as a complete sump assembly with a clip-in, removable pump and strainer for easier cleaning. The multi-port inlet supports multiple hose sizes for flexible installation.
-
