ID
1259241
$ 80.91
1-2 weeks delivery time
-
+
The Rule-A-Matic Plus float switch is a slim, impact-resistant automatic bilge pump control switch with an integrated housing to help prevent dirt ingress and jamming. It supports up to 20 A and is rated for 12–24 volts, with switching points of pump ON at 51 mm (2 inches) water level and OFF at 19 mm (3/4 inch). Size is listed as 120 x 60 x 90 mm, with product weight 0.24 kg, and it includes a built-in manual test function.
- Description
- Ask a Question
-

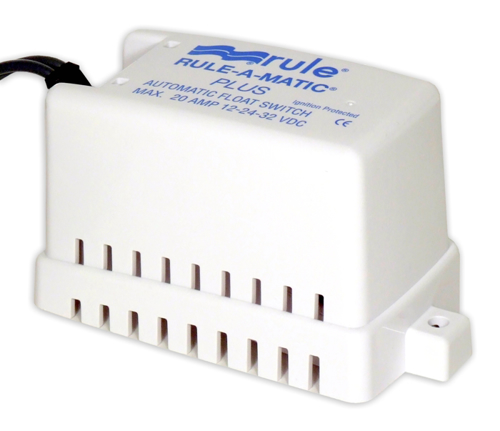

Rule-A-Matic Plus Automatic Bilge Float Switch
The Rule 40A is a robust float switch designed for automatic bilge pump control in harsh marine environments. Its integrated, impact-resistant housing is intended to reduce the risk of debris-related sticking, and a built-in manual test function supports quick functional checks during maintenance.
Technical Specifications
Brand Rule Supplier Code 40A Order Number 00304486 Barcode 042237095633 Voltage 12–24 Volts Maximum Current 20 A Current Rating (12V) 20 A Current Rating (24V) 10 A Current Rating (32V) 6.5 A Switch ON Level 51 mm (2 inches) Switch OFF Level 19 mm (3/4 inch) Mounting Loose or on bilge pump Product Dimensions 120 x 60 x 90 mm Dimensions (Alternate Listing) Height 7.6 cm / Length 13.7 cm / Width 6.4 cm Product Weight 0.24 kg Packed Weight (Approx.) 0.44 kg Shipping Weight 0.50 kg Packaged Dimensions 24.00 cm x 16.00 cm x 16.00 cm
Compatibility
- Bilge pumps
Features
- Integrated, impact-resistant housing designed to help prevent dirt buildup and seizing
- Manual test function for convenient operation checks
- Designed to withstand impact and dirt in harsh marine conditions
- Corrosion-resistant construction (long-life seals, waterproof grommet protection, and blocked wiring)
- High abrasion-resistant wire
- Mercury-free design
- Version with an optional fuse holder is available
-
