The Rule model 43 bilge pump control panel uses an internally lit 3-position rocker switch (Manual, Off, Automatic) to operate a bilge pump with an automatic float switch. It includes a built-in fuse holder (fuse not included) and a fail-safe spring return from manual to off, in a durable black plastic panel rated 12–32V with a 20A maximum current. Stated dimensions are 73 x 61 mm (also listed as 73 mm wide x 60 mm high), with shipping weight listed as 0.30 kg.
- Description
- Ask a Question
-

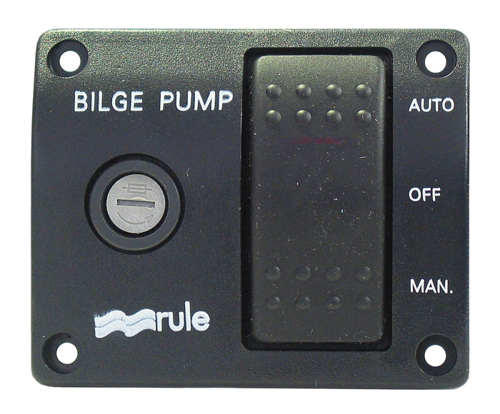

Rule Model 43 Lighted 3-Way Bilge Pump Control Panel
The Rule 43 is a compact switch panel for controlling a bilge pump system with automatic and manual operation. It provides a clear, lighted rocker interface and integrates a fuse holder for straightforward protection when installed in a marine electrical panel.
Technical Specifications
Switch Positions Manual / Off / Automatic Switch Illumination Internally lit rocker switch Indicator Light Red light indicates the pump is running Fail-Safe Function Spring return to Off from Manual Fuse Holder Built-in (fuse not included) Voltage Range 12–32V Voltage (Listed) 12V DC Max Current 20A DC Material Durable black plastic; corrosion-resistant marine-grade plastic Dimensions (Listed) 73 x 61 mm Dimensions (Listed) 73 mm (width) x 60 mm (height) Operating Temperature Range -20°C to 60°C Ingress Protection IP65 Shipping Weight (Listed) 0.30 kg Actual Weight (Listed) 0.07 kg (approximately 0.27 kg when packed) Packaged Dimensions (Listed) 14.00 x 11.00 x 14.00 cm Mounting Type Surface-mounted Warranty 1-year limited warranty Order Number 00304487 Supplier Code 43 Barcode 042237084217
Features
- 3-way lighted rocker switch for Manual, Off, and Automatic control
- Fail-safe spring return helps prevent leaving the pump on in manual mode
- Built-in fuse holder for convenient fuse installation (fuse not supplied)
- Red running indicator for quick status confirmation
- Compact panel size for easy installation
Compatibility
- For use with automatically controlled bilge pumps
- Automatic mode operates in combination with an automatic bilge or float switch
- Compatible with Rule bilge pumps in 12V DC systems (as stated)
Product Details
The panel is designed for safe, straightforward bilge pump control and includes an integrated fuse holder (fuse not included). Fuse selection should be based on the Rule pump specifications it is connected to.
-
