ID
1259248
$ 79.46
1-2 weeks delivery time
-
+
The Rule 44 deluxe bilge control panel is a 24–32V DC unit with a 3-way lighted rocker switch, red control light, and integrated fuse holder (max. 10A at 24V DC; fuse not included). Designed for automatically controlled bilge pumps used with an automatic bilge or float switch, it provides fail-safe operation to prevent the pump being left on in manual mode. Panel dimensions are 60 mm high x 73 mm wide; shipping weight is 0.30 kg.
- Description
- Ask a Question
-

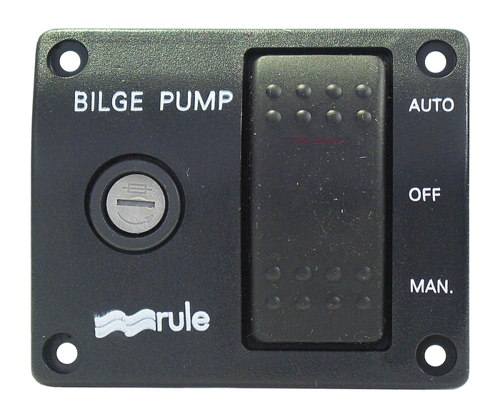

Rule 44 Lighted 3-Way Bilge Pump Control Panel
The Rule 44 is a compact bilge pump control panel intended for marine installations using automatically controlled bilge pumps. It combines a 3-way lighted rocker switch, a red running indicator, and an integrated fuse holder to support safer manual operation through a fail-safe switch function.
Technical Specifications
Brand Rule Supplier Code 44 Model 44 Order Number 00304488 Barcode 042237085122 Voltage 24 Volts Supported System Voltage 24–32V DC Switch Type 3-Way Lighted Rocker Switch Indicator Light Red Control Light (Red LED Indicator) Fuse Holder Included (Fuse Not Supplied) Fuse Holder Rating Max. 10A at 24V DC Mounting Type Surface-Mount Installation Panel Material Plastic (Black Plastic Panel) Dimensions Height 60 mm / Width 73 mm Packaged Dimensions 14.00 x 11.00 x 14.00 cm Actual Weight 0.08 kg (Approx.) Packed Weight 0.28 kg (Approx.) Shipping Weight 0.30 kg
Compatibility
- Automatically controlled bilge pumps
- Automatic bilge switches
- Float switches
- Rule bilge pumps
Features
- 3-way lighted rocker switch for bilge pump control
- Red control light indicates when the pump is running
- Fail-safe switch helps prevent the pump being left on during manual operation
- Integrated fuse holder for added circuit protection (fuse not supplied)
-
