ID
1259238
$ 88.94
1-2 weeks delivery time
-
+
The Rule 403STC livewell pump is a 12V unit with straight discharge for efficient water flow and quiet, reliable operation. It provides 800 GPH open flow (3028 L/H) and includes 2 x 19 mm connections, a 3/4-inch outlet, a 1/2-inch NPT external port, and a 4-inch straight thru-hull intake port. Electrical and installation details include 2.8A at 12V (4.0A at 13.6V), a 5A fuse, 148 mm height, 70 mm width, and 110 mm straight grommet mounting.
- Description
- Ask a Question
-

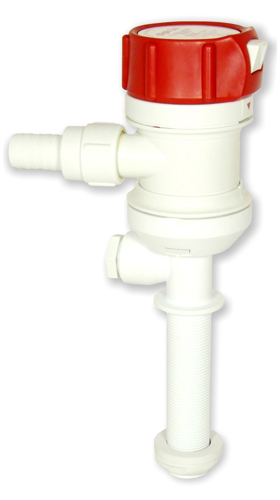

Rule 403STC 12V Livewell Pump With Straight Discharge
The Rule 403STC is a livewell pump designed to deliver efficient water flow using a straight-discharge design for quiet and reliable operation. It includes an external port and supports multiple intake options to simplify installation and help maintain consistent performance.
Technical Specifications
Order Number 00304594 Supplier Code 403STC Barcode 042237095886 Voltage 12V Current Draw 2.8 A @ 12V, 4.0 A @ 13.6V Fuse 5A Open Flow 800 GPH Flow Rate 3028 L/H Connections 2 x 19 mm Outlet 3/4 inch External Port 1/2 inch NPT Intake Port 4 inch Straight Thru-Hull Mounting 110 mm straight grommet Pump Height 148 mm Pump Width 70 mm
Features
- Straight discharge design
- Quiet and reliable operation
- External port for installation flexibility
- Multiple intake options for easier setup
-
