ID
1259231
$ 120.22
1-2 weeks delivery time
-
+
The Rule Eco-Switch bilge pump control switch is a remote-mounted 12V automatic switch rated 0–20A that activates a bilge pump using compressed air through a tube connected to a plastic bell in the water. The bulkhead-mounted design keeps wiring and switch electronics above the bilge water level, uses a non-mercury design with no submerged electrical connections, and has no moving internal parts. Dimensions are 4.8 cm (H) x 15.2 cm (L) x 7.0 cm (W) with a shipping weight of 0.40 kg; order number 00304484, barcode 042237085184.
- Description
- Ask a Question
-

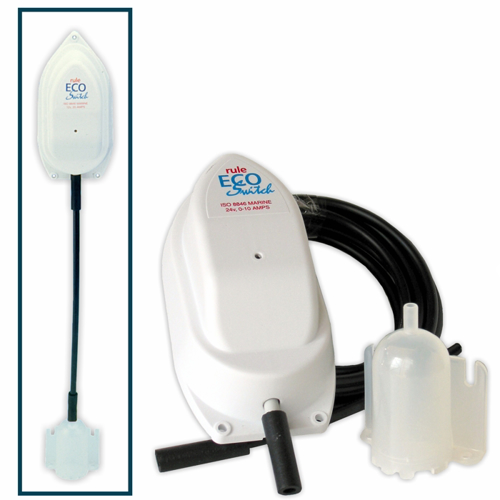

Rule Eco-Switch Air-Pressure Bilge Pump Control Switch
The Rule Eco-Switch is a remote-mounted automatic bilge pump switch that uses air pressure to turn a bilge pump on as water rises. A tube connects the bulkhead-mounted switch to a plastic bell in the bilge; as the bell fills with water, the air in the tube compresses and triggers the switch, keeping all wiring and electronics above the bilge water level.
Technical Specifications
Brand Rule Voltage 12V Current Rating 0–20 A Height 4.8 cm Length 15.2 cm Width 7.0 cm Shipping Weight 0.40 kg Order Number 00304484 Supplier Code 39 Barcode 042237085184 Compliance USCG ISO 8846 Marine (ignition protection)
Features
- Bulkhead-mounted above the bilge water level
- Tube connected to a plastic bell that sits in the water
- Air pressure activation as the bell fills with water
- No submerged electronics and no submerged electrical connections
- Non-mercury design
- No moving internal parts
Compatibility
- Alternative to Jabsco 59400-0012
-
