ID
1259232
$ 122.78
1-2 weeks delivery time
-
+
The Rule 39-24 Eco Switch is a remote-mounted 24V DC bilge pump control switch rated up to 10A that uses air pressure (compressed air in a tube and bell) to trigger pump operation. The non-submerged electronic system mounts above the bilge water level and activates when the bell fills with water; ignition protected and designed as a non-mercury alternative. Switch dimensions are 155 x 75 x 48 mm and bell dimensions are 100 x 60 x 30 mm, with pre-set switch levels of 57 mm ON and 25 mm OFF.
- Description
- Ask a Question
-

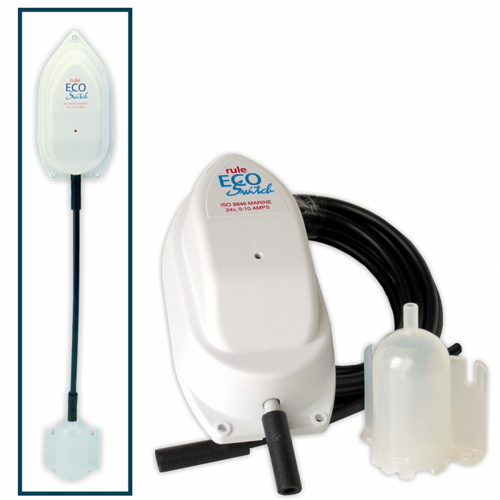

Rule 39-24 Eco Air-Pressure Bilge Pump Switch
The Rule 39-24 Eco Switch is an automatic bilge pump control switch that uses air pressure to activate a bilge pump. The electronics are mounted above the bilge water level with a tube running down to a plastic bell, keeping wiring and switching components out of the water while providing precise, non-mercury operation.
Features
- Remote-mounted bilge switch operated by air pressure
- Mounted to a bulkhead above the bilge water level with a tube to a plastic bell
- As the bell fills with water, air pressure activates the bilge pump once a pre-set level is reached
- Non-submerged electronics for safety and durability
- Eliminates the need for mercury floats
- No moving internal parts and no submerged electric connections (as stated)
- Ignition protected
Technical Specifications
Brand Rule Voltage 24V DC Maximum Current 10A Ignition Protected Yes Pre-Set Switch Levels 57 mm ON, 25 mm OFF Switch Dimensions (L x W x H) 155 x 75 x 48 mm Bell Dimensions (L x W x H) 100 x 60 x 30 mm Shipping Weight 1.10 kg Order Number 00304485 Supplier Code 39-24 Barcode 042237085191
Product Details
- Alternative to Jabsco 59400-0024 (as stated)
- Compiles with USCG ISO 8846 Marine (ignition protection) (as stated)
-
