ID
1259036
$ 97.66
1-2 weeks delivery time
-
+
The Rule 20DA-24 submersible bilge pump is a compact 24V unit with a robust plastic body and a quick-release strainer for easy cleaning. It delivers up to 3028 litres per hour (up to 50 litres per minute), is suitable for discharge heads up to 2 metres, and includes a built-in thermal cut-off and a backflow prevention check valve to reduce residual water and odours. Hose connection is 19 mm (3/4 inch) to 25 mm (1 inch), dimensions are 112 x 74 x 64 mm, and listed power consumption is 3.4 Ah.
- Description
- Ask a Question
-

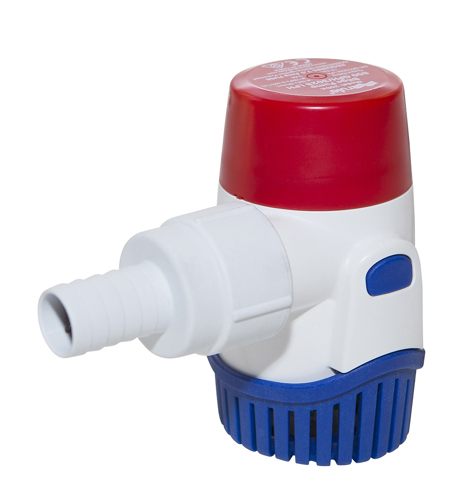

Rule 20DA-24 Compact Submersible Bilge Pump (24V)
The Rule 20DA-24 is a compact, lightweight submersible bilge pump designed for reliable water removal in marine bilge and drainage applications. It uses a robust plastic body with an integral, quick-release strainer for straightforward cleaning, and includes protection and flow-management features such as a thermal cut-off and a check valve for backflow prevention.
Technical Specifications
Supplier Code 20DA-24 Order Number 00304467 Barcode 042237104755 Voltage 24 Volts (24V DC / 24 VDC) Yield 3028 litres per hour Flow Rate Up to 50 litres per minute (13 gallons) Discharge Head Suitable for discharge heads up to 2 metres (max. recommended discharge head 2 meters) Hose Connection 19 mm (3/4 inch) to 25 mm (1 inch); 19 mm (3/4 inch) ID hose or 25 mm (1 inch) NPSM Dimensions (H x W x D) 112 x 74 x 64 mm Dimensions (Additional Listing) 119 mm high; 64 mm x 74 mm base Power Consumption 3.4 Ah Current Draw 1.7 amps; amperage max 2A (27V) Fuse Size 3 amps; fuse size 4A Body Material Tough, durable plastic body Weight 0.41 kg (approx. 0.61 kg packed) Shipping Weight 0.70 kg Operating Temperature 32°F to 140°F (0°C to 60°C) Standards Meets ISO8846 marine ignition and ISO8849 marine bilge pump standards Pump Type Centrifugal water pump Capacity (Additional Listing) 3.955 Litre / hour (1.045 Gallons / hour) at zero discharge head; at 2 m head 2.175 Litre / hour (575 GPH)
Features
- Quick-release strainer for easy cleaning
- Built-in thermal cut-off (TCO) for added pump and vessel protection
- Backflow prevention check valve reduces residual water and odours
- Hidden air vents help prevent air-locking and assist check valve operation
- Threaded discharge for easier installation and maintenance
- Optimised impeller for higher flow at the same amperage
Compatibility
- Base fits existing Rule 21R screw holes for easy replacement
- Replaces the 24V Rule 21R model with enhanced features
- Alternate to Rule 21R
- For automatic operation, compatible with Rule Float Switches
Product Details
- Submersible pump with an integral strainer
- Operated by a separate panel switch or float switch to sense water and activate the pump
- Product portfolio: Submersible bilge pumps
-
