ID
1259035
$ 82.48
1-2 weeks delivery time
-
+
The Rule 20DA submersible, non-automatic bilge pump is a 12V DC unit rated at 3028 liters per hour and designed for water removal in small boats. It supports 19 mm (3/4 inch) and 25 mm (1 inch) hose connections, uses a ventilated housing to help prevent air locking, and includes a non-return valve, threaded discharge, removable strainer, and snap-lock mounting. Listed electrical data includes 3.4 Ah power consumption and 3.4 A current draw (also stated as max 4.3 A at 13.6V), with fuse size stated as 5 A (also listed as 7.5 A); dimensions are 112 x 74 x 64 mm.
- Description
- Ask a Question
-

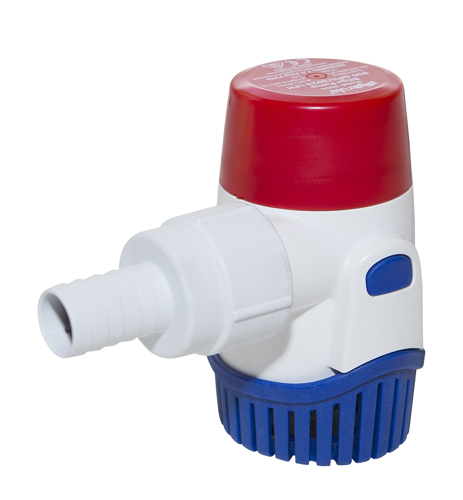

Rule 20DA 800 Submersible Bilge Pump (12V DC)
The Rule 20DA is a robust, non-automatic submersible bilge pump intended for dependable water removal in small boats. It is designed for straightforward installation and maintenance with a snap-lock mounting base, a removable inlet strainer, and a threaded discharge connection.
Technical Specifications
Brand Rule Model 20DA Order Number 00304466 Supplier Code 20DA Barcode 042237104694 Product Portfolio Submersible bilge pumps Voltage 12 Volts (12V DC) Flow Rate 3028 L/h; also stated as up to 50 L/min; also stated as 3955 L/h at zero head and 2175 L/h at 2 m head Max Recommended Discharge Head 2 m Hose Connections 19 mm (3/4 inch) and 25 mm (1 inch) Connection (Alternate Listing) 19 mm (3/4 inch) ID hose or 25 mm (1 inch) NPSM Dimensions (H x W x D) 112 x 74 x 64 mm (also listed as 11.2 x 7.4 x 6.4 cm, without discharge) Power Consumption 3.4 Ah Current Draw 3.4 A (also listed as max 4.3 A at 13.6V) Fuse Size 5 A (also listed as 7.5 A) Weight 0.41 kg (approx. 0.61 kg packed) Shipping Weight 0.70 kg Package Dimensions 18.00 x 9.00 x 17.00 cm Operating Temperature Range -30 C to 60 C Pressure Rating Up to 2 bar (28 psi) Standards Meets ISO8846 marine (ignition) and ISO8849 marine (bilge pump) standards
Features
- Non-automatic pump operated by a separate float switch and/or switch panel
- Ventilated housing and hidden air vents to help prevent air locking
- Built-in thermal protection / thermal cut-off
- Quiet operation
- Snap-lock attachment for secure mounting
- Silicone-coated power cable (listed)
- Removable strainer for quick cleaning
- Non-return valve / check valve to help prevent backflow into the bilge
- Threaded hose tail / threaded discharge for easier installation and maintenance
Compatibility
- Compatible with Rule Float Switches (for automatic operation when used with a float switch)
- Base compatible with existing Rule 20R screw holes
- Listed as an alternate to Rule 21R
Product Details
- Designed for small boats and submersible bilge applications
- Higher flow performance compared to previous models (listed)
-
