The Rule 14A heavy-duty submersible bilge pump is a 12V DC unit rated up to 14,010 liters per hour (also listed as 14,006 L/h at zero discharge head) with anti-airlock ventilated housing, built-in thermal protection, and a snap-lock mounting system. It uses a 38 mm (1-1/2 inch) hose connection, can be operated via a float switch or switch panel, and includes a removable strainer plus a silicone-coated power cable; additional listed data includes up to 4 m discharge head, IP68 rating, ignition protection, motor life rated at 2500 hours, and current draw noted as 17.5 A at 12V (with max amperage listed as 20 A).
- Description
- Ask a Question
-

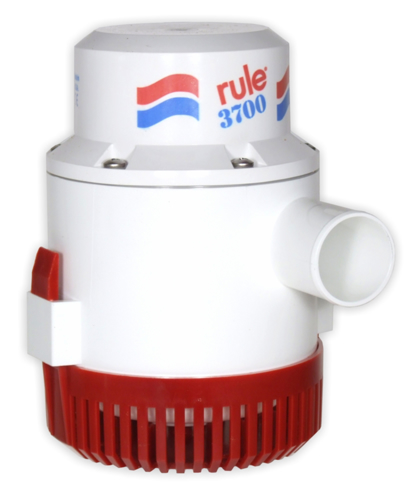

Rule 14A Heavy-Duty Submersible Bilge Pump (Rule 3700)
The Rule 14A is a high-capacity, heavy-duty submersible bilge pump designed for reliable, quiet bilge water removal. It features a ventilated housing to help prevent air lock, built-in thermal protection, and a quick-release/removable inlet strainer to simplify cleaning and maintenance.
Features
- Operates via float switch or switch panel
- Ventilated housing to prevent air lock (anti-airlock design)
- Built-in thermal protection
- Snap-lock mounting system for easy mounting
- Power cable with silicone coating
- Removable / quick-release inlet strainer for easy cleaning
- Ignition-protected motor (listed)
- IP68 waterproof rating (listed)
Technical Specifications
Brand Rule Supplier Code 14A Order Number 00304463 Barcode 042237083357 Product Portfolio Submersible bilge pumps Voltage 12V DC Flow Rate 14010 liters/hour (also listed as 14,006 liters/hour at zero discharge head); 9,274 liters/hour at 2 m head Flow Rate (Alternate Listing) Up to 220 liters/minute (48 gallons/minute) Maximum Recommended Discharge Head 4 m Hose Connection 38 mm (1-1/2 inch) ID / bore hose Current Draw 17.5 A at 12V (also listed: max 20 A) Fuse Size 20 A (also listed: 25 A) Power Consumption 10.1 Ah Dimensions (Listed) 184 x 124 mm Dimensions (Listed) 124 mm diameter x 184 mm height Dimensions (Listed) 180 mm high, 135 mm base diameter Material (Listed) Tough plastic body; corrosion-resistant components Motor Life (Listed) 2500 hours Weight (Listed) 2.71 kg (approx. 3.21 kg packed) Shipping Weight 3.50 kg Package Dimensions 19.00 x 28.00 x 16.00 cm Warranty 1 year limited warranty Certifications CE; RoHS compliant
Compatibility
- Rule Float Switches (for automatic operation)
- Alternative to Jabsco 30250-2012 (listed)
Product Details
This pump is described as suitable for larger yachts and motor cruisers, and for use in both fresh and saltwater environments. It is intended for operation with a separate panel switch or a float switch to sense water and activate the pump.
-
