The Rule 16A submersible bilge pump is a 24V DC heavy-duty unit rated at 14,010 liters per hour and designed for continuous marine water removal. It includes a ventilated housing to help prevent air locks, built-in thermal protection, and a quick-release strainer for internal cleaning. The pump uses a 38 mm (1-1/2 inch) hose connection, is operated via a float switch or switch panel, meets ISO8846 and ISO8849 marine standards, and is recommended for discharge heads up to 4 meters.
- Description
- Ask a Question
-

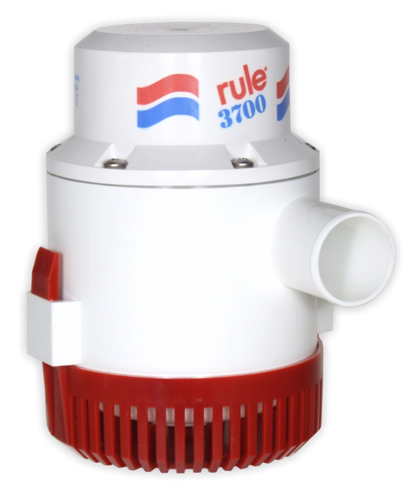

Rule 16A Heavy-Duty 24V Submersible Bilge Pump
The Rule 16A is a high-capacity submersible bilge pump for marine water removal. It is built for continuous-duty use and is designed for easy maintenance, with protective features that support reliable operation in demanding onboard conditions.
Features
- Operated by float switch or switch panel
- Ventilated housing helps prevent air locking
- Built-in thermal protection / thermal overload protection
- Quick-release strainer for internal cleaning
- Tough, lightweight plastic housing
- Ignition protected design for marine environments
- Meets ISO8846 and ISO8849 marine standards
- Recommended for discharge heads up to 4 meters
Technical Specifications
Brand Rule Product Portfolio Submersible bilge pumps Supplier Code 16A Order Number 00304464 Barcode 042237083517 Voltage 24V DC Flow Rate 14010 liters/hour Flow Rate (Also Listed) Up to 220 liters/minute (48 gallons/minute) Capacity at 2 m Head (Also Listed) 9,274 liters/hour (2,450 GPH) Recommended Discharge Head Up to 4 meters Hose Connection 38 mm (1-1/2 inch) ID hose Power Consumption 6.9 Ah Amperage (Max, Also Listed) 10 A Fuse Size (Also Listed) 12 amp Fuse Size (Also Listed) 15 A Motor Life (Also Listed) Rated for 2500 hours of operation Operating Temperature (Also Listed) -30 C to 60 C Weight (Also Listed) 2.72 kg (approx. 3.22 kg packed) Shipping Weight 3.50 kg Dimensions (Also Listed) 184 x 124 mm Dimensions (Also Listed) 124 mm diameter x 184 mm height Dimensions (Also Listed) Height: 180 mm; Base Diameter: 135 mm Packaged Dimensions (Also Listed) L: 19.00 cm x H: 28.00 cm x W: 16.00 cm Material (Also Listed) Tough plastic body
Compatibility
- Rule Float Switches
Product Details
This pump is intended for marine use and can be run automatically (with a float switch) or manually (with a switch panel). The quick-release strainer supports cleaning access, while the ventilated housing and thermal protection help support dependable operation during continuous duty.
-
