ID
1258969
$ 257.83
1-2 weeks delivery time
-
+
The Rule 1500 Gold Series heavy-duty submersible bilge pump is a 12V DC non-automatic unit rated at 5678 liters per hour (up to 95 liters per minute / 21 gallons per minute). It is activated by a float switch or switch panel and uses a 28 mm (1-1/8 inch) hose connection, with a maximum discharge head of 2 meters. Supplied features and details include thermal protection, ventilated housing, silicone-coated power cable, quiet operation, snap-lock attachment, removable/quick-release inlet strainer, IP68 rating, ignition protection, 750 mm cable length, and a 5-year warranty.
- Description
- Ask a Question
-

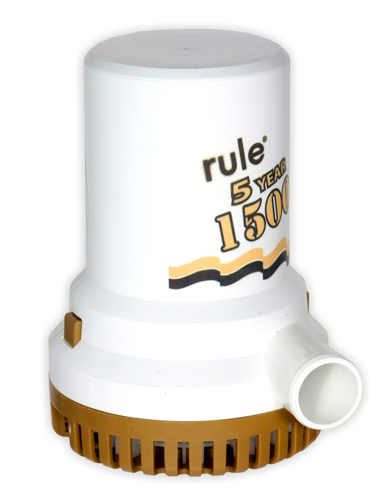

Rule 1500 Gold Series Heavy-Duty Submersible Bilge Pump
The Rule 1500 Gold Series is a high-capacity, non-automatic submersible bilge pump designed for demanding marine bilge-water removal. It is intended to be switched via a float switch or switch panel and includes protective design elements and service-friendly strainer access for routine cleaning.
Technical Specifications
Order Number 00304456 Supplier Code 04 Barcode 042237085801 Model 4 Voltage 12V DC Flow Rate 5678 liters/hour Output Up to 95 liters/min (21 gallons/min) Maximum Discharge Head 2 m (6.6 ft) Hose Connection 28 mm (1-1/8 inch) Power Consumption 4 Ah Current Draw 4.8 amps Fuse Size 9 amps Dimensions 152 x 100 mm (also listed as 153 mm height, 100 mm base diameter) Included Cable Length 750 mm Actual Weight 1.38 kg (approx. 1.88 kg packed) Material Corrosion-resistant plastic body Strainer Integral strainer; removable / quick-release inlet strainer Ignition Protection Yes IP Rating IP68 Operating Temperature Range -20°C to 60°C (-4°F to 140°F) Warranty 5 years
Features
- Non-automatic operation; activated by a float switch or switch panel
- Ventilated housing
- Thermal protection
- Silicone-coated power cable
- Quiet operation
- Snap-lock attachment
- Integral strainer with removable / quick-release inlet strainer for maintenance
Compatibility
- Mid-sized yachts
- Motor cruisers
- Other marine vessels requiring bilge-water removal
- Compatible with Rule Float Switches (for automatic operation when paired)
Product Details
- Designed for efficient bilge-water evacuation in demanding marine conditions
- Ignition-protected construction for marine use
-
