The Rule 1500 heavy-duty submersible bilge pump is a non-automatic 24V DC unit rated at 5678 liters per hour (1500 GPH) at zero discharge head. It is operated via a separate float switch or switch panel and includes thermal protection plus a ventilated housing to help prevent air locks. The pump uses a 28 mm (1-1/8 inch) hose connection, features a removable/quick-release inlet strainer for cleaning, and includes a silicone-coated power cable with snap-lock attachment.
- Description
- Ask a Question
-

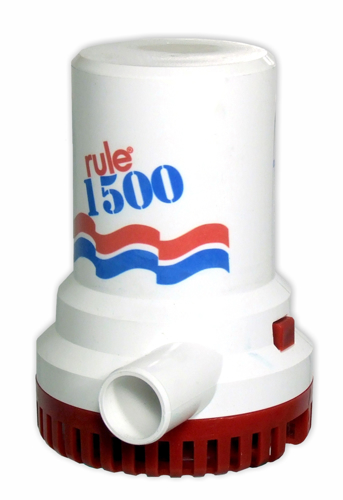

Rule 1500 Heavy-Duty Submersible Bilge Pump (Non-Automatic)
The Rule 1500 is a robust, non-automatic submersible bilge pump designed for water removal on boats. It is activated by a separate float switch or a switch panel and is built with a ventilated housing to help prevent air locks. Built-in thermal protection and a removable strainer support safe operation and easier maintenance.
Technical Specifications
Order Number 00304455 Supplier Code 03 Barcode 042237083609 Model 3 Brand Rule Product Portfolio Submersible bilge pumps Voltage 24 Volts (24V DC) Flow Rate 5678 liters per hour Capacity at Zero Discharge Head 5678 l/h (1500 GPH) Output Up to 95 liters per minute (21 gallons per minute) Flow at 2 m Head 2574 l/h (680 GPH) Maximum Recommended Discharge Head 2 meters Hose Connection 28 mm (1-1/8 inch) Hose Connection (ID) 29 mm (1-1/8 inch) ID hose Dimensions (HxWxD) 152 x 100 mm Dimensions 108 mm diameter x 152 mm height Dimensions 153 mm (Height) x 100 mm (Base Diameter) Power Consumption 2.3 Ah Max Amperage 3.5 A Fuse Size 4 amps Fuse Size 5 A Cable Length 750 mm Material Durable plastic construction Temperature Range 0 C to 60 C (32 F to 140 F) Motor Type 24V DC motor, ignition-protected Weight 1.36 kg (approx. 1.86 kg when packed) Shipping Weight 1.80 kg Noise Level Low noise operation
Features
- Non-automatic operation (requires a separate float switch or switch panel)
- Thermal protection
- Ventilated housing to help prevent air locks
- Quick-release / removable inlet strainer for easy cleaning
- Integral strainer to help protect against debris
- Silicone-coated power cable
- Snap-lock attachment
- Ignition-protected for marine environments
- Suitable for fresh and saltwater use
- Low power consumption design (as stated)
Compatibility
- 28 mm (1-1/8 inch) bore hoses
- Rule Float Switches (for automatic operation)
- Mid-sized yachts
- Motor cruisers
- Boats
Product Details
This submersible pump is intended for bilge water removal, rainwater collection, and general water displacement. It is operated by a separate panel switch or float switch to sense water and activate the pump.
-
