The Rule 12-2000 submersible bilge pump is a non-automatic, commercial-grade unit rated up to 7,570 L/h (2000 GPH) at zero discharge head and 4,921 L/h at 2 m head. It operates on 24V DC (also listed as compatible with 10–24V), uses a 28 mm (1-1/8 inch) discharge outlet / 29 mm (1-1/8 inch) ID hose connection, and requires a separate panel switch or float switch for operation. Listed details include 1.8 m wire leads, a three-year warranty, and dimensions noted as 152 x 100 mm (HxWxD) and 108 mm diameter x 152 mm height.
- Description
- Ask a Question
-

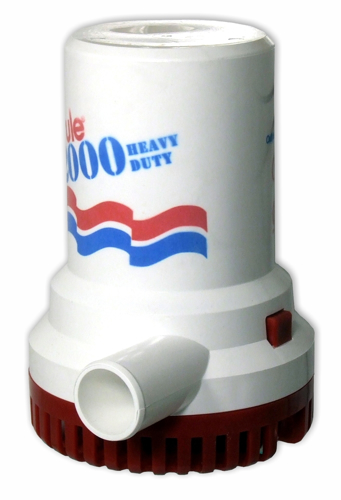

Rule 12-2000 Heavy Duty Submersible Bilge Pump
The Rule 12-2000 is a heavy duty, non-automatic submersible bilge pump built to commercial standards for rapid bilge water removal. It is designed to be operated by a separate panel switch or a float switch, and is intended for marine applications such as mid-sized yachts and motor cruisers.
Technical Specifications
Type Non-automatic submersible bilge pump Rated Capacity (Zero Head) 7,570 L/h (2000 GPH) (also listed as 7,750 L/h) Flow at 2 m Head 4,921 L/h (1300 GPH) Voltage 24V DC (also listed as compatible with 10–24V; 10–12V or 12–24V) Discharge Outlet 28 mm (1-1/8 inch) Hose Connection 29 mm (1-1/8 inch) ID hose Wire Leads 1.8 m (6 ft) (UL-listed wire leads) Amperage Max 6 A Fuse Size 7.5 A (also listed as 10 A) Power Consumption 4 Ah Maximum Discharge Head 3 m Motor Life 2500 operational hours Ignition Protected Yes Body Material Tough corrosion-resistant plastic Strainer Integral strainer with quick-release inlet Dimensions 152 x 100 mm (HxWxD); 108 mm diameter x 152 mm height Packaged Dimensions 11.00 x 16.00 x 14.00 cm (L x H x W) Weight Actual 1.43 kg; packaged 1.93 kg; shipping weight 1.80 kg Temperature Range -10°C to +50°C Warranty Three-year warranty Order Number 00304459 Supplier Code 12 Barcode 042237083340 Product Portfolio Submersible bilge pumps Compliance Meets relevant marine safety and performance standards
Features
- Non-automatic operation (requires a float switch or panel switch)
- High-capacity output for rapid bilge water removal
- Quick-release strainer for easier maintenance and cleaning
- Ignition-protected motor for marine use
- Heavy duty construction built to commercial standards
Compatibility
- Rule Float Switches
- Mid-sized yachts
- Motor cruisers
Product Details
This pump is intended to run when activated by a separate switch (panel switch or float switch). It uses a 28 mm (1-1/8 inch) discharge outlet and is specified for 24V DC operation, with additional listings indicating broader voltage compatibility.
-
