ID
1394198
$ 154.71
1-2 weeks delivery time
Type:
- Straight
- 90° Elbow
RM69 Set C three-way toilet valves are designed for direct mounting on the toilet and provide three waste-routing functions: direct discharge overboard, discharge to a buffer or 40 litre waste tank, and emptying of the buffer or 40 litre waste tank. The range includes versions with a 90° hose connection or a straight connection and is designed for 1 1/2" (38 mm) hose systems.
- Description
- Ask a Question
-

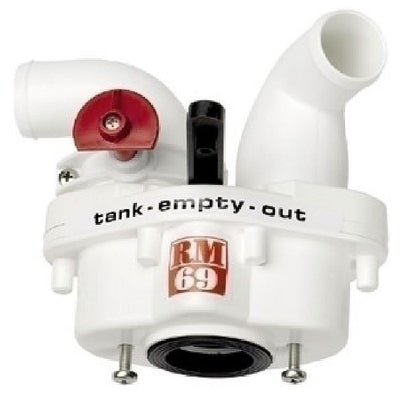

RM69 Set C Direct-Mount Three-Way Toilet & Waste Tank Valves, 38 mm Hose Connection, 90° or Straight
RM69 Set C three-way valves are designed for direct installation on a marine toilet and provide multiple waste discharge and tank-emptying functions.
The valve offers three operating positions: direct discharge overboard, discharge to a buffer tank or 40 litre waste tank, and emptying of the buffer tank or 40 litre waste tank.
The range includes a version with a 90° hose connection and a version with a straight hose connection. Both are intended for 1 1/2" (38 mm) marine waste hose systems.
Product Features
- Brand / Series: RM69
- Valve type: Set C three-way toilet valve
- Designed for direct mounting on the toilet
- Three operating positions
- Position 1: Direct overboard discharge
- Position 2: Discharge to buffer tank or 40 L waste tank
- Position 3: Empty buffer tank or 40 L waste tank
- Connection size: 1 1/2" (38 mm)
- Available with 90° or straight hose connection
- Designed for marine toilet waste systems
Available Variants
Model Item Number Valve Set Hose Connection Connection Size Material Colour RM69 804 RM804 Set C 90° 1 1/2" (38 mm) - - RM69 804.STR RM804.STR Set C Straight 1 1/2" (38 mm) Plastic White -
