ID
1394204
$ 159.33
1-2 weeks delivery time
-
+
RM69 302 Senior A is a self-priming manual diaphragm pump with a capacity of approximately 85 litres per minute. Designed for bilge and holding tank applications, it can be mounted in any position and features a durable linear polyester housing with oil-resistant nitrile rubber diaphragm and valves. The pump delivers approximately 1 litre per stroke and uses 38 mm inlet and outlet connections.
- Description
- Ask a Question
-

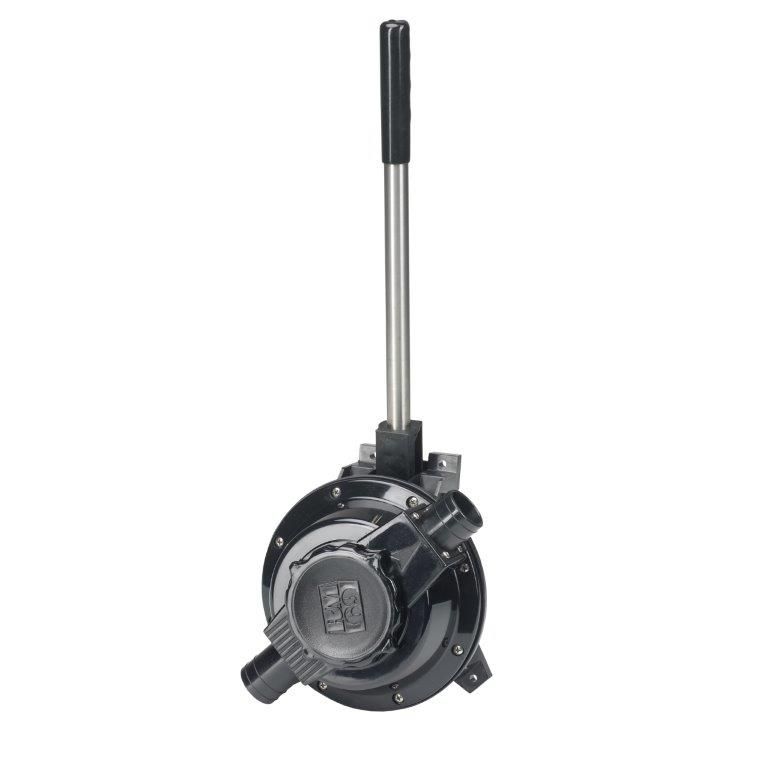

RM69 302 Senior A Manual Bilge Pump, 85 L/min, 38 mm Inlet / Outlet
RM69 302 Senior A is a self-priming manual diaphragm pump designed for bilge pumping and emptying holding tanks.
The pump provides a capacity of approximately 85 litres per minute and delivers approximately 1 litre per stroke. Its robust construction allows installation in any position, providing flexibility for different onboard layouts.
The pump housing is manufactured from linear polyester, while the diaphragm and valves are made from oil-resistant nitrile rubber.
The RM69 302 has a suction height of 4.75 metres, a delivery height of 5.5 metres and uses 1 1/2" (38 mm) inlet and outlet connections.
Product Features
- Brand / Series: RM69
- Model: 302 Senior A
- Product type: Manual diaphragm / bilge pump
- Self-priming operation
- Capacity: Approx. 85 L/min
- Output per stroke: Approx. 1 L
- Suitable for bilges and holding tanks
- Can be mounted in any position
- Pump housing material: Linear polyester
- Diaphragm and valve material: Oil-resistant nitrile rubber
- Suction height: 4.75 m
- Delivery height: 5.5 m
- Inlet diameter: 1 1/2" (38 mm)
- Outlet diameter: 1 1/2" (38 mm)
- Colour: Black
Technical Specifications
Parameter Specification Model RM69 302 Item Number RM302 Product Type Manual diaphragm / bilge pump Capacity Approx. 85 L/min Capacity per Stroke Approx. 1 L Suction Height 4.75 m Delivery Height 5.5 m Pump Housing Material Linear polyester Diaphragm / Valve Material Nitrile rubber Inlet Diameter 1 1/2" (38 mm) Outlet Diameter 1 1/2" (38 mm) Installation Any position Colour Black -
