RM69 303 Senior B Manual Bilge Pumps, 85 L/min, 38 mm Inlet / Outlet

ID 1394205

$ 172.03

1-2 weeks delivery time

Color:

Black
White

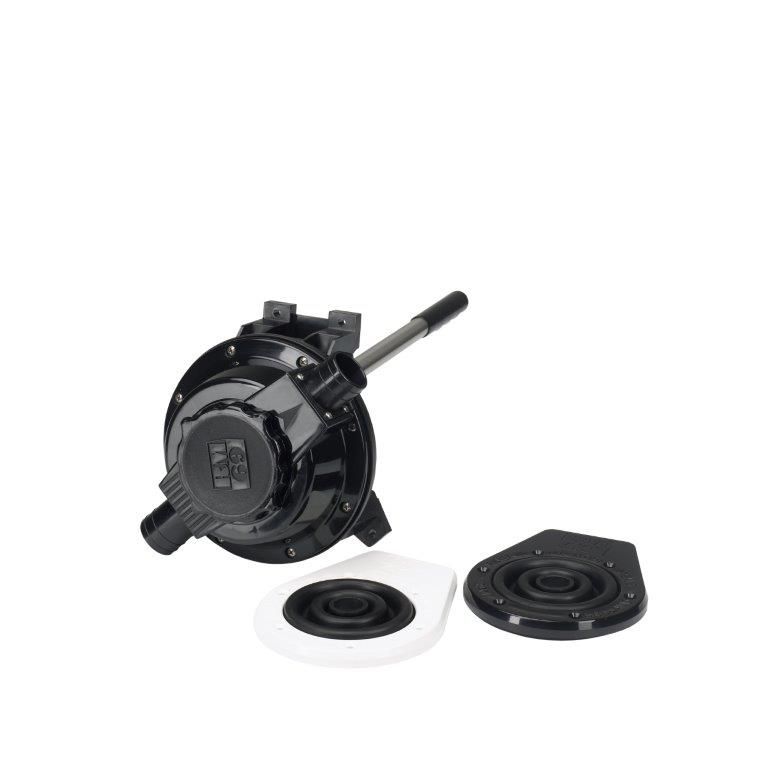

RM69 303 Senior B is a self-priming manual diaphragm pump for bilge and waste tank applications, available with either a black or white housing. Both versions provide a capacity of approximately 85 litres per minute, deliver around 1 litre per stroke and can be installed through a bulkhead or below deck in any position. The pump uses a linear polyester housing, oil-resistant nitrile rubber diaphragm and valves, and 38 mm inlet and outlet connections.

Description
Ask a Question

RM69 303 Senior B Manual Bilge Pumps, 85 L/min, 38 mm Inlet / Outlet, Black or White

RM69 303 Senior B is a self-priming manual diaphragm pump designed for emptying bilges and waste holding tanks.

The pump has a capacity of approximately 85 litres per minute and delivers approximately 1 litre per stroke. Its robust construction allows installation through a bulkhead or below deck and it can operate in any mounting position.

The pump housing is manufactured from linear polyester, while the diaphragm and valves are made from oil-resistant nitrile rubber. The pump uses 1 1/2" (38 mm) inlet and outlet connections.

The Senior B range is available with either a black housing as RM69 303 or a white housing as RM69 303.W.

Product Features

Brand / Series: RM69
Model: Senior B
Product type: Manual diaphragm / bilge pump
Self-priming operation
Capacity: Approx. 85 L/min
Output per stroke: Approx. 1 L
Suitable for bilges and waste holding tanks
Suitable for bulkhead or below-deck installation
Can be installed in any position
Pump housing material: Linear polyester
Diaphragm and valve material: Oil-resistant nitrile rubber
Suction height: 4.75 m
Delivery height: 5.5 m
Inlet diameter: 1 1/2" (38 mm)
Outlet diameter: 1 1/2" (38 mm)
Available colours: Black and White

Available Variants

Model	Item Number	Colour	Capacity	Output per Stroke	Inlet / Outlet
RM69 303	RM303	Black	Approx. 85 L/min	Approx. 1 L	1 1/2" (38 mm)
RM69 303.W	RM303.W	White	Approx. 85 L/min	Approx. 1 L	1 1/2" (38 mm)
