The Johnson Pump JP-64535 Aqua Jet WD 3.5 washdown pump kit delivers a quiet, low-pulsation five-chamber diaphragm system for deck wash and cleaning use on boats, vehicles, and industrial applications. It provides up to 13 liters per minute output with an approximate 5 bar (70 PSI) cut-off pressure from a 12V supply, and the pressure switch automatically cycles the pump on and off as demand changes at the spray nozzle. The kit includes the pump, inlet filter, 7.5 m coiled hose, spray nozzle, strainer, hose connections, garden hose adapter, and deck connection, plus dry-run capability, self-priming up to 2.5 m, and a motor with built-in overheating protection.
- Description
- Ask a Question
-
Johnson Pump JP-64535 Aqua Jet WD 3.5 Washdown Diaphragm Pump Kit
The Johnson Pump JP-64535 Aqua Jet WD 3.5 is a complete deck wash and cleaning kit built around a quiet, low-pulsation five-chamber diaphragm pump. With higher pressure for faster cleaning, it is suited to onboard washdown installations and other cleaning tasks where a compact 12V pressure pump and ready-to-use hose and nozzle setup are preferred.
Application
- Deck wash and cleaning device
- Boats
- Vehicles
- Industrial applications
Technical Specifications
Product Portfolio Washdown Pumps Voltage 12V Output 13 L/min (3.5 GPM) Cut-Off Pressure Approx. 5 bar (70 PSI) Self-Priming Height Up to 2.5 m Power Consumption 11.5 A Recommended Fuse 15 A (not included) Connections 3/4 in hose connection; 1/2 in hose connection Dimensions (Without Connections) Height 11.6 cm; Width 13.1 cm; Length 23.6 cm Shipping Weight 2.50 kg
Product Details
- Pump type: Five-chamber diaphragm system
- Elastomers: Santoprene and Nitrile
- Pressure control: Integrated pressure switch cycles the pump off at the predefined cut-off pressure and automatically restarts when pressure drops during nozzle use
- Protection: Motor with built-in overheating protection switch
- Alternative to: 10-13558-01 (JP-64535 is for the US market as well as for the EU)
Features
- Quiet, low-pulsation operation
- Dry running without damage
- Self-priming up to 2.5 m
- Pressure switch maintains controlled on/off operation based on demand

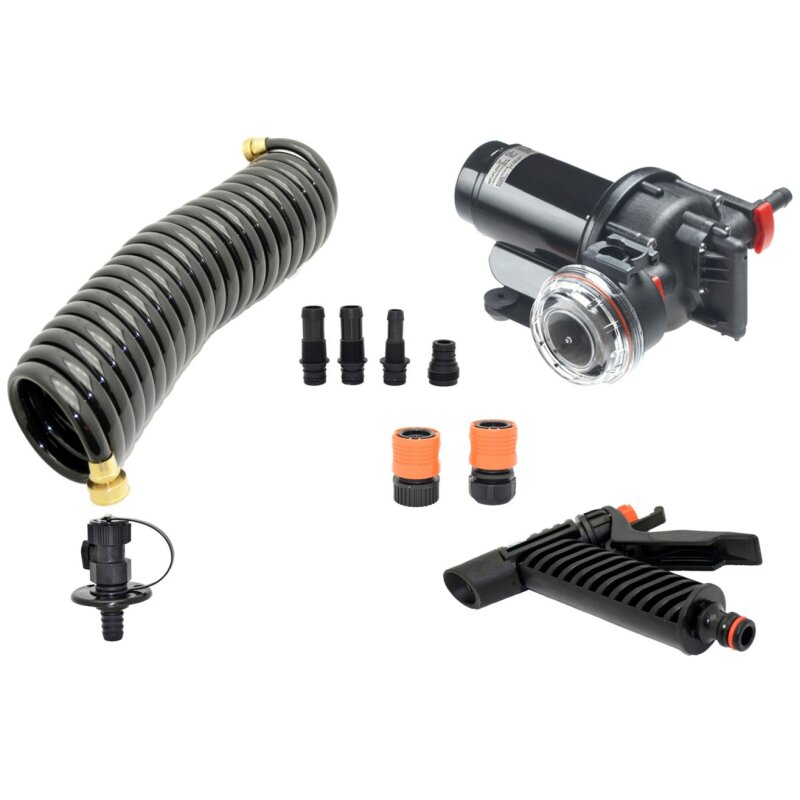

Included Components
- Pump
- Inlet filter
- 7.5 m coiled hose
- Spray nozzle
- 40 mesh strainer
- 19 mm (3/4 in) hose connections
- 12 mm (1/2 in) hose connections
- Garden hose adapter
- Deck connection
-
