The Johnson Pump Viking 70-50007 manual bilge pump is a hand-operated diaphragm unit built for dependable emergency dewatering when power is unavailable. It supports bulkhead and through-deck installation (including behind walls) and can also transfer toilet waste water thanks to large valve openings. With a 38 mm (1-1/2") hose connection, up to 90 l/min output at 100 strokes/min (at 1 m suction height, 0.9 l/stroke), and a maximum suction lift of 4 m, it delivers reliable manual pumping performance in marine systems.
- Description
- Ask a Question
-

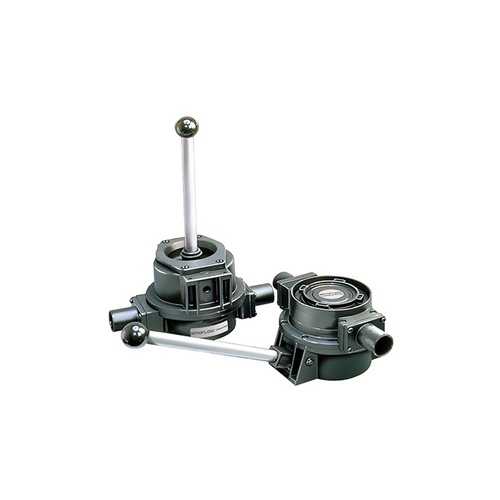

Johnson Pump 70-50007 Viking Manual Diaphragm Bilge Pump
The Johnson Pump Viking manual bilge pump is a hand-operated diaphragm pump designed to keep you prepared when electrical power is not available. It is intended for emergency bilge pumping and can also be used to pump waste water from toilets due to its large valve openings. Installation is flexible, with options for mounting behind walls, through the deck, or on bulkheads.
Application
- Emergency bilge pumping when power is unavailable
- Pumping out water from bilges
- Waste water transfer from toilets (large valve openings)
- Mounting options: behind walls, through-deck, or bulkhead mounting
Technical Specifications
Brand Johnson Pump Part Number 70-50007 Article Number 667050007 Pump Type Manual diaphragm bilge pump Mounting Bulkhead and through-deck, horizontal mount Hose Connection 38 mm (1-1/2 in) inlet and outlet for 38 mm (1-1/2 in) internal diameter hose Maximum Output 90 l/min (at 100 strokes/min) Capacity (Listed) 95 l/min Performance Reference At 1 m suction height: 0.9 l/stroke Maximum Suction Lift 4 m (13 ft) Diameter 164 mm (6.45 in) Maximum Width 253 mm (9.96 in) Height 133 mm (5.23 in) Handle Length 285 mm (11.22 in) Weight 2 kg (4.5 lb) Shipping Weight 2.40 kg Product Portfolio Manual bilge pumps
Product Details
- Two versions are mentioned for installation alternatives
- Pump head can be rotated 360° in 1/8 steps for improved installation flexibility
- Includes a handle made of anodized aluminium
- Suitable for bilge water or black water transfer
Performance Values
- 60 strokes/min: 54 l/min (14.5 GPM)
- 80 strokes/min: 72 l/min (19 GPM)
- 100 strokes/min: 90 l/min (24 GPM)
-
