ID
1331022
$ 188.69
1-2 weeks delivery time
-
+
The Johnson Pump 70-50005 Viking manual diaphragm bilge pump provides dependable emergency hand pumping for removing water from a boat’s bilge during power outages. Large valve openings also make it suitable for pumping wastewater from toilets, while flexible mounting options allow installation behind walls, through the deck, or on bulkheads. It features a 38 mm (1-1/2") hose connection, a compact 164 mm diameter body, and a maximum suction lift of 4 m, with performance up to 90 L/min at 100 strokes/min (1 m suction height) as stated.
- Description
- Ask a Question
-

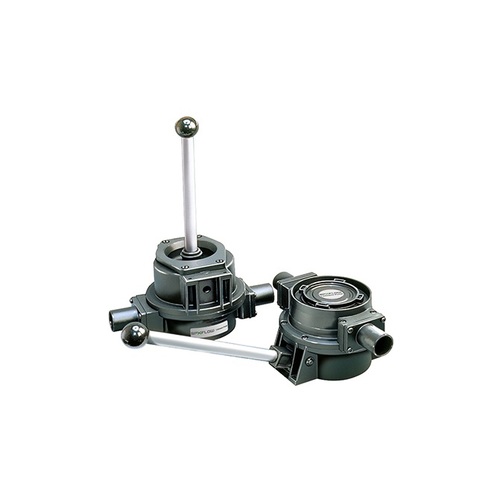

Johnson Pump 70-50005 Viking Hand-Operated Bilge Pump Unit
The Johnson Pump 70-50005 Viking is a hand-operated diaphragm bilge pump built for emergency use when onboard power is unavailable. Its design supports flexible installation positions and, thanks to large valve openings, it can also be used for wastewater transfer from toilets.
Application
- Emergency bilge water removal during power outages
- Suitable for bilge water or black water transfer
- Can pump wastewater from toilets (large valve openings)
Installation / Mounting Options
- Behind walls
- Through the deck (through-deck mounting)
- On bulkheads (through-bulkhead mounting)
- Available in two versions to allow installation alternatives
- Model listed: Wall mount with cover seal
- Pump head can be rotated 360° (in 1/8 steps)
Technical Specifications
Brand Johnson Pump Part Number 70-50005 Article Number 667050005 Type Manual diaphragm bilge pump Connections Inlet and outlet for 38 mm (1-1/2") inside-diameter hose Maximum Output (Listed) 90 L/min Capacity (Listed for Wall Mount With Cover Seal) 95 L/min Maximum Suction Lift 4 m (13 ft) Diameter 164 mm Maximum Width 253 mm Height 133 mm Handle Length 285 mm Weight 2 kg Shipping Weight (Listed) 2.40 kg Product Portfolio (Listed) Manual bilge pumps
Performance Values (At 1 m Suction Height, 0.9 L per Stroke)
- 60 strokes/min: 54 L/min (14.5 GPM)
- 80 strokes/min: 72 L/min (19 GPM)
- 100 strokes/min: 90 L/min (24 GPM)
Product Details
- Compact design for practical placement in marine installations
- Includes a handle made of anodized aluminum
- Designed for through-deck and bulkhead mounting installations
-
