The Johnson Pump 32-57151-02 shower sump unit from the Cartridge Series provides automatic wastewater drainage from multiple inlet points using Ultima switch technology. The submersible design supports tool-free motor removal for easy maintenance, while multiple intake ports and a 19 mm discharge connection simplify installation to common hose sizes. Performance figures listed include 61 l/min (972 GPH) at 27 V straight and 53 l/min (844 GPH) at 1 m head, plus an additional listing of 72 l/min straight and 51 l/min at 1 m head on 24 V, with current values shown as 2 A (fuse 3 A) and also 5 A. A check valve, tight-fitting lid, and removable mesh filter help keep the sump clean and reduce odors, and the compact housing dimensions are provided in both cm and mm formats.
- Description
- Ask a Question
-

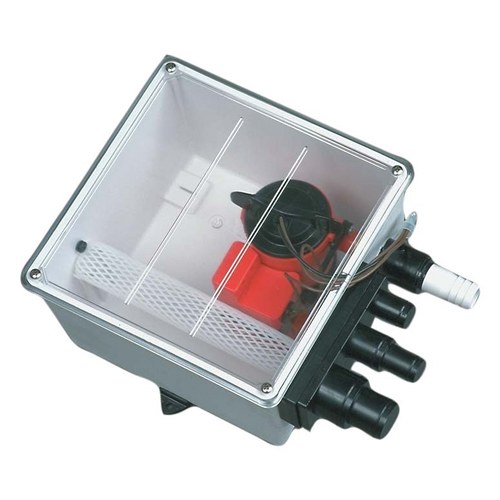

Johnson Pump 32-57151-02 Multiport Shower Sump Unit
The Johnson Pump 32-57151-02 is a multiport shower sump pump and collection tank system intended to improve onboard drainage. Built as a submersible Cartridge Series unit, it supports quick service with a motor that can be removed for maintenance or replacement without tools. Automatic on/off operation is provided by Ultima switch technology, while a check valve, tight-fitting lid, and removable mesh filter help reduce splashing, simplify cleaning, and minimize odors.
Application
- Wastewater handling from more than one drain point
- Onboard drainage for equipment increasingly used in the boating industry, including freshwater system-related sources such as showers, dishwashers, and galley installations
Technical Specifications
Series Cartridge Series Type Submersible shower sump pump / collection tank system Color Grey Voltage (Listed) 24 V; 27 V; 13.6 V / 27 V (performance listing) Current Draw (Listed) 2 A; also listed: 5 A; also listed: 5 A / 3 A Fuse Size (Listed) 3 A Straight Capacity (Listed) 61 l/min (972 GPH) at 27 V; also listed: 72 l/min Capacity at 1 m Head (Listed) 53 l/min (844 GPH); also listed: 51 l/min Discharge Connection 19 mm (3/4 in) Intake Ports (Listed) 19 mm (3/4 in), 25 mm (1 in), 29 mm (1-1/8 in), 38 mm (1-1/2 in) Intake Connection Options (Listed) 1 x 3/4 in and 1 x 3/4 in; or 1 x 1 in and 1 x 1-1/8 in; or 1 x 1-1/2 in Dimensions (Listed) Length 29 cm x Height 14.5 cm x Width 21 cm; also listed: 273 x 210 x 135 mm; also listed: 280 x 210 mm with max height 140 mm; also listed: 280 x 210 mm (11.42 x 8.26 in) with max height 140 mm (5.7 in) Weight (Listed) 1.05 kg; also listed: 0.9 kg Shipping Weight (Listed) 1.90 kg EAN 8719182074687 Article Number (Listed) 66325715102 Product Portfolio (Listed) Electric waste water pumps
Product Details
- Automatic operation: Ultima switch technology for automatic on/off switching
- Backflow protection: check valve on the outlet helps prevent water from flowing back into the tank
- Clean installation: tight-fitting lid helps reduce splashing and odors
- Easy cleaning: removable mesh filter supports straightforward cleaning
- Serviceability: motor can be removed for maintenance or replacement without tools
Features
- Multiport intake configuration for wastewater from multiple sources
- Submersible Cartridge Series design
- 19 mm discharge connection
-
