ID
1331003
$ 516.53
1-2 weeks delivery time
-
+
The Johnson Pump 32-64534 Aqua Jet WD 5.2 washdown kit delivers high-pressure cleaning performance for marine wash down tasks using a quiet, low-pulsation five-chamber diaphragm system. It runs on 12V with 185W power, provides up to 20 liters per minute flow, and uses a pressure switch with approximately 5 bar cut-off to support efficient, on-demand operation. The kit is supplied as a complete set with the pump, 40 mesh strainer, spray pistol/nozzle, 7.5 m coiled hose, and multiple connection options including a 1/2 inch NPT inlet and 3/4 inch GHT outlet, plus hose connectors, a bulkhead/deck connection, and barb port fittings.
- Description
- Ask a Question
-
Johnson Pump 32-64534 Aqua Jet WD 5.2 Washdown System Kit
The Johnson Pump Aqua Jet WD 5.2 deck wash pump kit is built to upgrade onboard cleaning with a complete, ready-to-install washdown solution. Designed for robust use in demanding environments, it combines a high-pressure pump with practical hose connections and included accessories for controlled washdown of decks, hulls, and other surfaces.
Application
- Deck wash and general cleaning for boats
- Cleaning applications for vehicles
- Industrial cleaning applications
Technical Specifications
Operating Voltage 12 V Power 185 W Power Consumption 15.9 A Recommended Fuse 20 A (not included) Maximum Flow Rate Up to 20 l/min (5.2 GPM) Cut-Off Pressure Approximately 5 bar (70 PSI) Self-Priming Up to 3 m Inlet Connection 1/2 in NPT Outlet Connection 3/4 in GHT Hose Connection 19 mm Hose Connection (Alternative Listing) 3/4 in Thread (Additional Listing) 1/2 in Dimensions (Listing) Length 240 mm; Width 214 mm; Height 110 mm Dimensions (Without Filter/Ports) Length 24 cm; Width 13.0 cm; Height 11.0 cm Weight 2.5 kg Shipping Weight 6.00 kg Manufacturer Warranty 3 years Article Number 663264534 EAN 8719182074809
Product Details
- Pump type: Five-chamber diaphragm system (quiet, low pulsation)
- Elastomers: Santoprene / Nitrile
- Protection: Motor with built-in overheating protection switch
- Pressure control: Integrated pressure switch shuts the pump off at approximately 5 bar and automatically restarts when pressure drops
- Operational capability: Dry running without damage

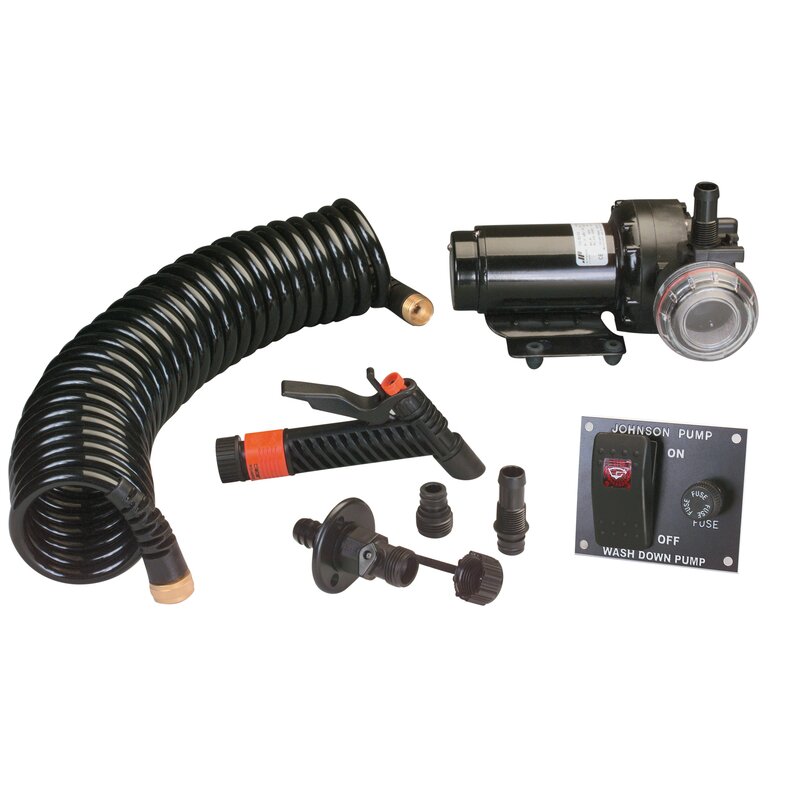

Included Components
- Aqua Jet WD 5.2 pump
- 40 mesh strainer (inlet filter)
- Spray pistol / spray nozzle
- 7.5 m coiled hose
- Hose connectors
- Barb port fittings
- Bulkhead fitting (3/4 in GHT)
- Deck connection
- Garden hose adapter
Features
- High-pressure washdown performance up to 5 bar for faster cleaning
- Up to 20 l/min output to support efficient rinsing and washdown
- On-demand operation via pressure switch for convenient control at the spray pistol/nozzle
- Self-priming capability up to 3 m for flexible installation
- Debris protection via included inlet strainer to help support reliable operation
-
