The Johnson Pump Aqua Jet WD 5.2 washdown kit (part number 32-64534R-24) delivers a complete 24V deck wash solution built around a quiet, low-pulsation five-chamber diaphragm pump with up to 20 L/min output and an approximately 5 bar (70 PSI) cut-off pressure. It supports self-priming up to 3 m, can run dry without damage, and includes an inlet filter, spray nozzle, 7.5 m coiled hose, hose connections, a deck connection with bulkhead fitting and valve, plus a switch for convenient onboard cleaning.
- Description
- Ask a Question
-
Johnson Pump 32-64534R-24 Aqua Jet WD 5.2 24V Washdown Kit
The Johnson Pump Aqua Jet WD 5.2 is a complete deck wash and cleaning kit designed for boats, vehicles, and industrial applications. Built around a quiet, low-pulsation five-chamber diaphragm system, it provides higher pressure cleaning up to 5 bar to make washdown tasks faster and easier.
Application
- Deck wash and general cleaning
- Boats
- Vehicles
- Industrial applications
Product Details
- Pump type: Five-chamber diaphragm system
- Elastomers: Santoprene and nitrile
- Self-priming: Up to 3 m
- Dry-running capability: Dry running without damage
- Motor protection: Built-in overheating protection switch
- Pressure control: Pressure switch shuts the pump off at approximately 5 bar (70 PSI)
- How it works: Pressure rises to the predefined cut-off pressure and the built-in pressure switch turns the pump off; internal valves help maintain pressure after shutdown; when the spray nozzle is actuated and pressure drops, the integrated pressure switch automatically turns the pump back on.

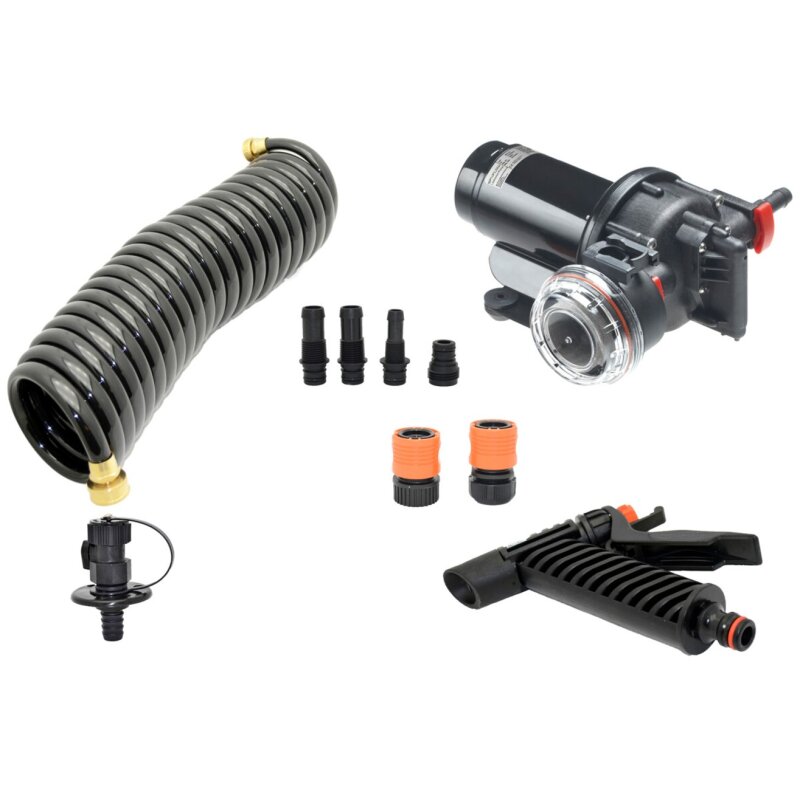

Included in the Kit
- Pump
- PUMProtector inlet filter
- 40 mesh strainer
- Spray nozzle (spray gun)
- 7.5 m coiled washdown hose
- 19 mm (3/4 in) hose connections
- Garden hose adapter
- Deck connection
- Bulkhead fitting with valve
- 2-way panel switch
- Illuminated surface-mounted switch
Technical Specifications
Brand Johnson Pump Part Number 32-64534R-24 Product Portfolio Washdown Pumps Voltage 24 V Output 20 L/min (5.2 GPM) Cut-Off Pressure 5 bar (70 PSI) Connection 19 mm hose connection Power Consumption 8 A Fuse 10 A (not included) Dimensions (H x W x L) 11.0 cm x 13.0 cm (without connections) x 24 cm Shipping Weight 6.00 kg -
