The Johnson Pump 10-35157-1 engine cooling impeller pump is a self-priming, shaft-driven unit in the F35B-9 series for Volvo Penta applications (port configuration). It uses a flexible impeller and a flange-mounted design for secure installation, with inlet/outlet ports configured for Volvo Penta and a stated size of 3/8 in (hose size 10 mm / 3/8 in). Supplied information also lists a brass or bronze body construction and includes service components such as repair kit JP-09-45589 and replacement impeller JP-09-808B.
- Description
- Ask a Question
-

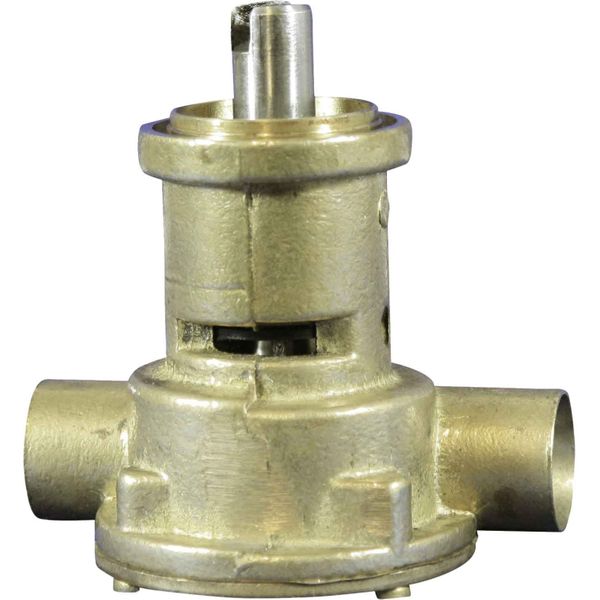

Johnson Pump 10-35157-1 F35B-9 Cooling Water Impeller Unit
The Johnson Pump 10-35157-1 is a self-priming cooling water impeller pump for engine cooling duties, built for Volvo Penta fitment and port-side configuration. It is a flange-mounted, shaft-driven pump design that supports reliable cooling-water circulation and is supplied with referenced service and impeller kit options for maintenance support.
Application
- Engine cooling pump for Volvo Penta applications (port configuration)
- Designed for Volvo Penta MD1 series
- Designed for Volvo Penta MD2 series
- Designed for Volvo Penta MD5 series
- Designed for Volvo Penta MD6 series
- Designed for Volvo Penta MD7 series
- Designed for Volvo Penta MD11 series
- Also referenced for Volvo applications
- Also referenced for BMW applications
- Also referenced for Farymann applications
Compatibility
- Replaces Volvo part number 858065
- Replaces Volvo part number 833883
- Replaces Volvo part number 833415
- Replaces Volvo part number 833522
- Replaces Volvo part number 840076
- Replaces pump 209788 (plain bearing pump 10-35118-1)
- Alternative to Johnson Pump 10-32157-2 (same pump except for the cam; must be replaced with the 1/2 cam 01-42415)
Technical Specifications
Brand Johnson Pump Model 10-35157-1 Series F35B-9 Pump Type Self-priming cooling water flexible impeller pump Body Material (As Listed) Brass body; bronze body Drive Type Shaft-driven Mounting Flange mounted Size 3/8 in Hose Size 10 mm / 3/8 in Inlet/Outlet 3/8 in, Volvo Penta configured Connections (As Listed) 17 mm / 13 mm port internal diameter (plug-in system); 17 mm internal diameter connection Impeller Hub / Shaft End (As Listed) Slotted Shaft Pin Drive Shipping Weight 0.90 kg EAN 8719182069881 Article Number 6610351571
Product Details
- Impeller type: Flexible impeller
- Included repair kit (listed): JP-09-45589 (also referenced as 09-45589)
- Replacement impeller (listed): JP-09-808B (also referenced as 09-808B and 09-808B-1)
- Mounting hardware (listed): Two pump clamps 01-43238
- Cam (listed): With 1/1 cam
- Included impeller (listed): MC97 impeller
- Note (listed): For pumps with 3/8 in BOP threaded ports, use part number JP-10-35157-3
Features
- Self-priming design to support dependable cooling-water pickup
- Flange-mounted construction for stable installation
- Shaft-driven operation intended for direct engine drive
- Service support with referenced repair kit and impeller replacement options
-
