ID
1330985
$ 281.92
1-2 weeks delivery time
-
+
The Johnson Pump 10-35211-3 F35B-9 flexible impeller cooling pump provides self-priming seawater circulation for engine cooling with a bronze pump body and flange mounting to the engine. It uses a neoprene impeller and a shaft seal with 2 lip seals, and the shaft extends 1.36 in out from the mounting flange for a defined fit. Connections are specified as 3/8 in ports (including 3/8"-18 NPSF straight thread and R3/8" British thread / 3/8" BSP internal thread), and it replaces Johnson 10-35122-1 pumps for multiple listed engine applications.
- Description
- Ask a Question
-

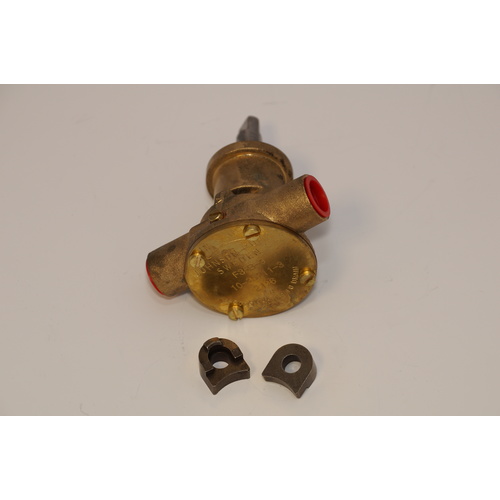

Johnson Pump 10-35211-3 F35B-9 Engine Cooling Impeller Unit
The Johnson Pump 10-35211-3 is a self-priming, flexible impeller pump built for engine cooling and cooling water circulation. Its bronze construction and flange-mounted drive make it a robust choice for marine and diesel engine installations where reliable seawater-compatible flow is required.
Application
- Use: Engine cooling and circulation
- Pump type: Flexible impeller engine cooling pump
- Mounting: Flange mounted to engine
- Replaces: Johnson 10-35122-1 pumps
- Alternative to: Nanni Diesel 970300495
Compatibility
- Nanni 2.40 HE
- WM Diesel (Kubota) WM 12 (Z482)
- Diecon D850 (Circulation Pump)
- Diecon Z600 (Circulation Pump)
- F J Fay 2400
- F J Fay D850
- Sea Wasp SW 4800 (6 KVA)
Technical Specifications
Brand Johnson Pump Part Number 10-35211-3 Pump Size F35 Pump Body Material Bronze Impeller Material Neoprene Shaft Seal 2 Lip Seals Ports / Connections (As Specified) - 3/8"-18 NPSF (Straight Thread)
- R3/8" (British Thread)
- 3/8" BSP internal thread
- Port size: 3/8" H
- Connection: 3/8" BSP
Cam Full Standard (1/2 Optional); With 1/1 Cam Shaft Extension Shaft extends 1.36" out from mounting flange Impeller Hub Slotted Shaft Pin Drive Drive / Shaft End Double Flat Drive Article Number 6610352113 EAN 8719182069881 Shipping Weight 1.60 kg
Product Details
- Model designation: F35B-9
- Self-priming: Yes (as stated)
- Product portfolio: Impeller pumps; cooling water pumps
Features
- Bronze pump body supports durability for cooling-water service
- Flexible neoprene impeller design for engine cooling circulation
- Flange-mounted drive for direct engine installation
- Two lip shaft seals specified for sealing performance
Related Kits (Ordered Separately)
- Service kit: 09-45589
- Impeller kit: 09-808B-1
-
