The Johnson Pump 10-35161-1 F4B-9 engine cooling impeller pump delivers self-priming seawater circulation for marine engines with a flange-mounted bronze body and 3/8" BSP female ports. Built to mount on the engine timing cover, it is designed for Vetus K3, K3D, and K4 installations and serves as a replacement for Jabsco 29470-2131, while also offering an alternative to Vetus STM8050. Supplied with an MC97 impeller, 1/1 cam, and a replacement impeller (JP-09-810B) for straightforward maintenance, this unit ships at 2.00 kg.
- Description
- Ask a Question
-

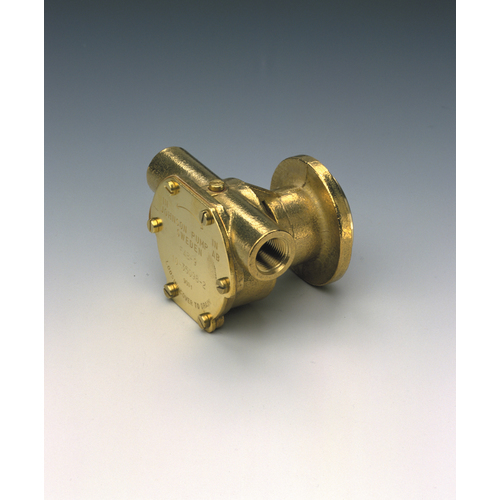

Johnson Pump 10-35161-1 F4B-9 Engine Cooling Impeller Pump Unit
The Johnson Pump 10-35161-1 is a self-priming flexible impeller pump designed to support reliable engine cooling water circulation in marine installations. Built within the F4B-9 family and using a durable bronze body, it is intended for flange mounting to the engine timing cover and uses 3/8" BSP female connections.
Application
- Engine cooling (cooling water pump)
- Flange mounted to the engine timing cover
- F4 size self-priming engine cooling pump
Compatibility
- Vetus K3 engines
- Vetus K3D engines
- Vetus K4 engines
- Mitsubishi K3D engines (often found)
- Mitsubishi K4D engines (often found)
- Vetus M4.14 engines (often found)
- Vetus M3.10 engines (often found)
- Volvo MD1 engines (often found)
- Volvo MD2 engines (often found)
- Volvo MD11 engines (often found)
- Volvo MD17 engines (often found)
Technical Specifications
Brand Johnson Pump Model 10-35161-1 Series F4B-9 Product Portfolio Impeller Pumps; Cooling Water Pumps Mounting Type Flange Connections 3/8" BSP female ports (internal thread) Material Bronze Cam 1/1 Impeller MC97 Replacement Impeller JP-09-810B Impeller Hub Slotted Shaft Pin Drive Drive/Shaft End Slotted Shaft Pin Drive; Double Flat Drive Replaces Jabsco 29470-2131 Alternative To Vetus STM8050 Delivery Weight 2.00 kg Article Number 6610351611 EAN 8719182064121
Product Details
- Pump type: Engine cooling flexible impeller pump
- Design: Flange-mounted pump intended for attachment to the engine timing cover
- Body material: Bronze construction for marine-duty use
Features
- Self-priming operation for dependable cooling water circulation
- 3/8" BSP female ports support straightforward plumbing integration
- Includes MC97 impeller and replacement impeller (JP-09-810B) to support ongoing maintenance
- Designed as a direct replacement for Jabsco 29470-2131 in listed applications
-
