ID
1330934
$ 1,678.79
1-2 weeks delivery time
-
+
The Johnson Pump 10-24308-12 self-priming cooling-water impeller pump is built for engine cooling duty with a bronze pump body for flange mounting and flange adapter connections. Its size F9 configuration uses a special -905 cam design (6.3 mm) and includes a neoprene impeller, while the drive is via a conical mount/shaft end with an M18 thread for a lock nut. Commonly used on Scania DN11, DN9, DS11, DSI11, DI13 and Yanmar 6 SY-STP and 8SY-STP engines, it also serves as an alternative to Scania 1785018 and 1101073 as well as Johnson Pump 10-24308-02 (OEM) and 10-24308-12 (Open Market).
- Description
- Ask a Question
-

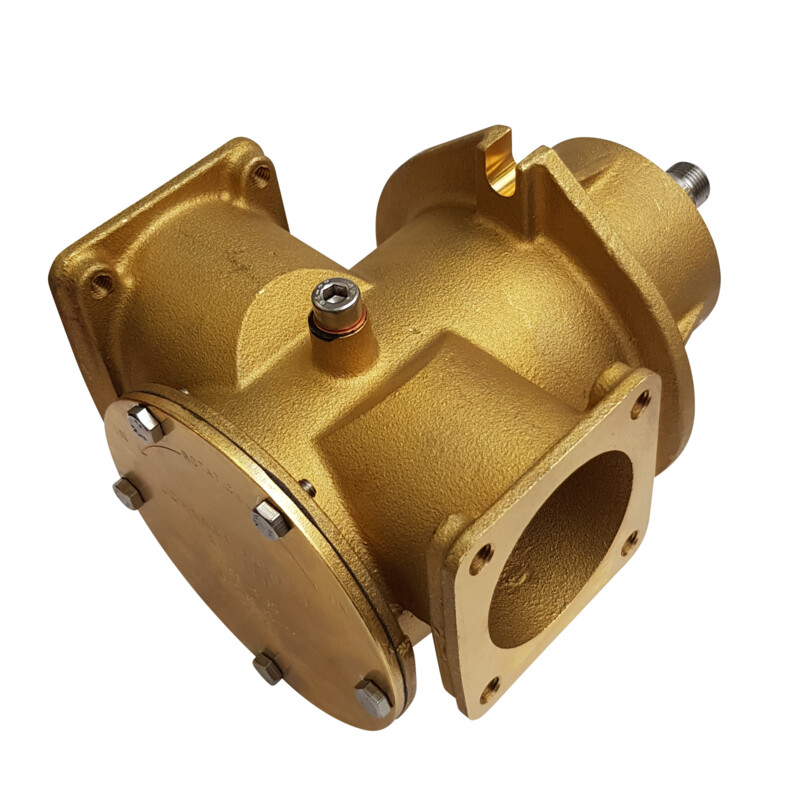

Johnson Pump 10-24308-12 F9B-905 Self-Priming Cooling Water Pump
The Johnson Pump 10-24308-12 is a self-priming engine cooling impeller pump designed for dependable seawater cooling-water circulation on marine engines. It combines a bronze pump body with a flange-mounted configuration and a dedicated cam profile to support stable cooling performance in demanding installations.
Application
- Engine cooling pump (self-priming)
- Seawater cooling-water applications
Compatibility
- Scania DN11 engines
- Scania DN9 engines
- Scania DS11 engines
- Scania DSI11 engines
- Scania DI13 engines
- Yanmar 6 SY-STP engines
- Yanmar 8SY-STP engines
Technical Specifications
Brand Johnson Pump Part Number 10-24308-12 Article Number 66102430812 Pump Type Impeller pump; cooling water pump Size F9 Cam Design -905 (6.3 mm) Body Material Bronze Mounting Type Flange Connection Flange adapter Drive / Shaft End Conical (tapered) mount / lock nut Lock Nut Thread M18 Impeller Neoprene (included) Impeller Hub Spline drive
Product Details
- Flange design with a bronze pump body for flange mounting.
- Special -905 cam profile (6.3 mm) matched to the F9 pump size.
- Drive arrangement via conical mount/shaft end with an M18 thread for a lock nut.
- Connections via flange adapter.
- Alternative to Scania 1785018, Scania 1101073, Johnson Pump 10-24308-02 (OEM), and 10-24308-12 (Open Market).
Features
- Self-priming engine cooling pump design
- Bronze construction for marine engine installations
- Neoprene impeller included
- Flange-mounted layout with flange adapter connections
Service Kits and Spare Parts (Referenced)
- Impeller kit: 09-814B
- Wear kit: 09-47783-02
- Shaft kit: 09-47556-106
- Screw kit: 09-47553-107
-
