ID
1330907
$ 437.20
1-2 weeks delivery time
-
+
The Johnson Pump 10-13407-08 Aqua Jet WD 5.2 wash down pump kit delivers high-pressure water flow for efficient marine clean-up, running on a 24 VDC, 185 W motor with built-in thermal protection and an integrated pressure switch for automatic on/off control. A five-chamber positive displacement diaphragm design provides smooth, quiet operation with up to 20 l/min (5.0 GPM) flow and cut-in/cut-out pressure of 50–70 PSI (3.7–5.0 bar), while self-priming up to 3 m and dry-running capability support reliable real-world washdown use. Durable materials and multiple connection options (including 1/2" NPT and 3/4" hose/GHT interfaces) help simplify installation across common washdown setups.
- Description
- Ask a Question
-

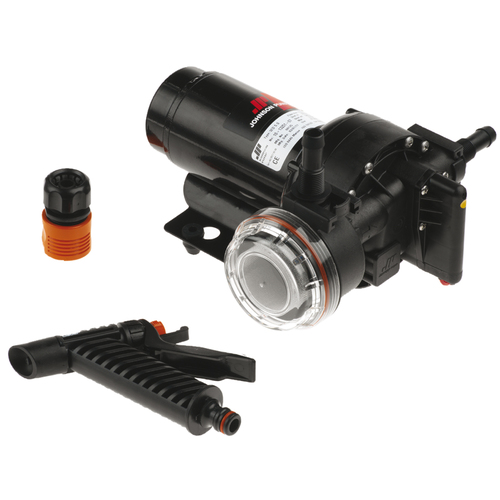

Johnson Pump 10-13407-08 Aqua Jet WD 5.2 Deck Wash System
The Aqua Jet WD 5.2 from Johnson Pump is a compact, high-pressure washdown solution built for faster, easier cleaning in marine environments. Its five-chamber diaphragm pumping system is engineered for smooth flow and quiet operation, with automatic control via an integrated pressure switch.
Application
- Washdown applications
- Deck washing and cleaning for boats, vehicles, and industrial applications
Technical Specifications
Part Number 10-13407-08 Product Type Five-chamber positive displacement diaphragm pump Operating Voltage 24 VDC (motor listed as 12 or 24 VDC) Motor Power 185 W Flow Rate 5.0 GPM (20 l/min) Pressure (Cut-In) 50 PSI (3.7 bar) Pressure (Cut-Out) 70 PSI (5.0 bar) Self-Priming Up to 3 m (9.8 ft) Duty Cycle Intermittent, maximum 20 minutes Port / Connection Options 1/2" NPT; 3/4" hose (13 mm); 3/4" garden hose thread (GHT); 19 mm (3/4") hose connections; hose connection: 13 mm; hose connection: 1/2"; thread: 3/8" Pump Body Material Nylon / polyamide Valve Housing Material Polypropylene / polyamide Valve Material Nitrile Diaphragm Material Santoprene Dimensions (L x W x H) 240 mm x 214 mm x 110 mm Weight 2.5 kg (shipping weight listed as 3.00 kg) Current / Fuse (Listed) Power consumption: 8 A; recommended fuse: 10 A; fuse listed: 20 A Ignition Protection Ignition protected according to ISO 8846 (Small craft – Electrical devices – Protection against ignition of surrounding flammable gases) Manufacturer's Warranty 3 years Article Number 663264534R24
Product Details
- Integrated pressure switch automatically turns the pump on and off when the spray nozzle is opened and closed.
- Built-in thermal protection helps protect the 185 W motor during operation.
- Valves maintain pressure after the pump switches off, supporting consistent spray performance.
- Designed for quiet, low-pulsation water delivery.
Features
- Quiet operation
- Smooth flow
- Self-priming up to 3 m (9.8 ft)
- Dry running without damage
- Low power consumption
- Quick disconnect fittings
- High-pressure capability up to 5 bar (70 PSI) for faster clean-up
Included Items (As Listed)
- Washdown pump with inlet strainer
- Spray nozzle / spray gun
- Suction filter, 40 mesh
- Connectors / hose connections
- Both BSP and NPT connections are included
- PUMProtector inlet filter
-
