ID
1332418
$ 427.22
1-2 weeks delivery time
-
+
The Johnson Pump Aqua Jet WD 5.2 deck wash diaphragm pump (10-13407-18) delivers quiet, low-pulsation washdown performance with up to 20 L/min flow and an automatic cut-off at approximately 5 bar. Its five-chamber, self-priming design lifts up to 3 m, tolerates dry running without damage, and uses a pressure switch to cycle on and off as the spray nozzle opens and closes. Built for 24V systems, it features a motor with an integrated overheating protection switch and is supplied with a 40 mesh strainer for added system protection.
- Description
- Ask a Question
-

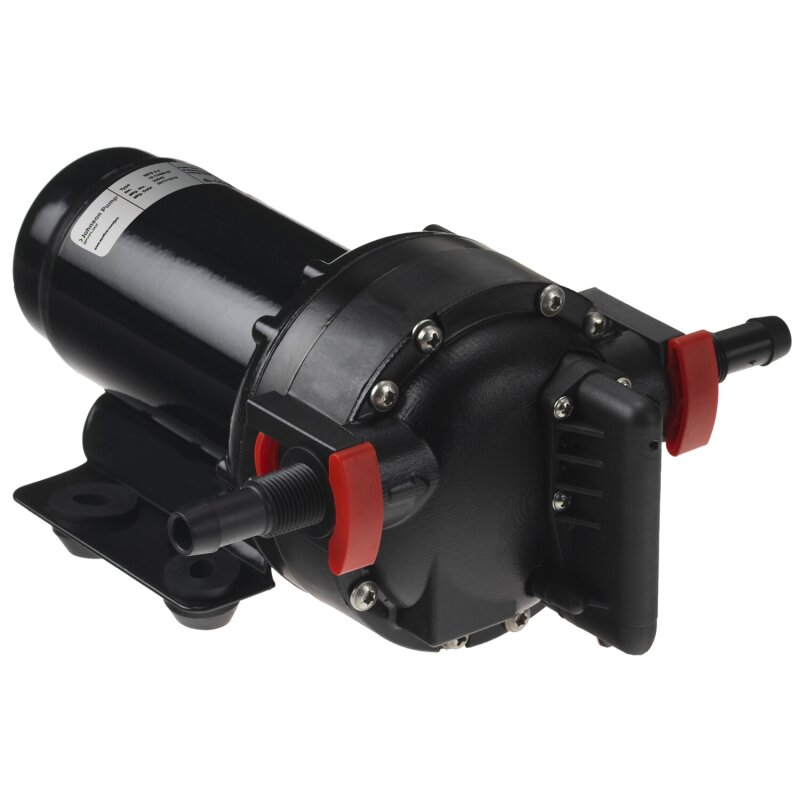

Johnson Pump Aqua Jet WD 5.2 Five-Chamber Deck Wash Unit
The Aqua Jet WD 5.2 from Johnson Pump is a dedicated deck wash and cleaning pump designed to provide strong pressure with quiet, low-pulsation operation. Its integrated pressure switch automatically stops the pump at the set cut-off pressure and restarts it when pressure drops, helping deliver consistent washdown performance during use.
Application
- Deck wash and cleaning for boats
- Cleaning for vehicles
- Industrial cleaning applications
Technical Specifications
Brand Johnson Pump Part Number 10-13407-18 Model Aqua Jet WD 5.2 Type Deck Wash Pump (Five-Chamber Diaphragm System) Rated Voltage 24 V Output Up To 20 L/min (5.2 GPM) Cut-Off Pressure Approx. 5 bar (70 PSI) Self-Priming Up To 3 m Connection 19 mm Hose Connection Power Consumption 8 A Recommended Fuse 10 A (Not Included) Dimensions (H x W x L) 11.0 cm x 13.0 cm x 24 cm (Width Without Connections) Shipping Weight 3.50 kg
Product Details
- Elastomers: Santoprene / Nitrile
- Dry-Run Capability: Dry running without damage
- Motor Protection: Built-in overheating protection switch
- Pressure Control: Pressure switch turns the pump off at approximately 5 bar and automatically turns it back on when pressure drops
- Included: 40 mesh strainer
- Product Portfolio: Water Pressure Systems, Washdown Pumps
Features
- Quiet, low-pulsation operation for more comfortable onboard use
- Higher pressure up to 5 bar supports faster and easier cleaning
- Self-priming suction up to 3 m helps simplify installation and operation
-
