ID
1330912
$ 1,293.60
1-2 weeks delivery time
-
+
The Johnson Pump Aqua Jet DUO 10.4 water pressure system combines two pumps in parallel to deliver a high-capacity, low-noise pressurized water supply for onboard uses where low amperage and sound levels matter, including showers and galleys. It supports both fresh and sea water operation, runs on 12 VDC (also specified with a 12 or 24 VDC motor with built-in thermal protection), and reaches a maximum cut-out pressure of 2.8 bar (41 PSI). The system includes a 2-liter accumulator tank and an inline strainer/suction filters for pump protection, and the ignition-protected motor design meets ISO 8846 for small craft electrical device safety.
- Description
- Ask a Question
-

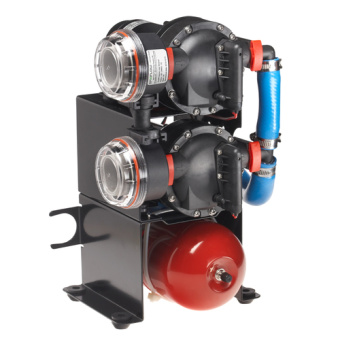

Johnson Pump 10-13409-01 Aqua Jet DUO 10.4 Pressurized Water System
The Johnson Pump 10-13409-01 Aqua Jet DUO 10.4 is a compact, efficient water pressure system built for marine installations that demand dependable flow with low noise and low current draw. By combining two pumps in parallel, it supports higher demand scenarios while maintaining stable pressure for everyday onboard water outlets.
Application
- Pressurized water supply for marine systems
- Designed for installations where low amperage and sound levels are important
- Suitable for showers
- Suitable for galleys
- Operates in fresh water
- Operates in sea water
Technical Specifications
Brand Johnson Pump Part Number 10-13409-01 Product Portfolio Water Pressure Systems Flow (Max) 9.5 GPM (36 L/min) Output (Max) 40 L/min (10.4 GPM) Maximum Pressure / Cut-Out 2.8 bar (41 PSI) Pump 1 Pressure Switch Cut-in 20.3 PSI (1.4 bar); Cut-out 29 PSI (2.0 bar) Pump 2 Pressure Switch Cut-in 25 PSI (1.7 bar); Cut-out 41 PSI (2.8 bar) Voltage 12 VDC (also specified as 12 or 24 VDC motor) Power 300 Watts total (also specified as 12V/200W) Current 25 A (also specified: amperage max 19.5 A) Fuse 25 A Duty Cycle Intermittent, maximum 20 minutes Ignition Protection Ignition protected according to ISO 8846 (Small craft – Electrical devices – Protection against ignition of surrounding flammable gases) Self-Priming Up to 2.5 m head Dry-Run Capability Runs dry without damage Port / Connection Size 1/2" hose (18 mm); also specified: 19 mm (3/4") hose inner diameter / 3/4" connection Dimensions 365 x 213 x 373 mm (also specified: Height 36.8 cm / Width 22.5 cm / Length 36.5 cm) Weight 7.5 kg Shipping Weight 10.00 kg Article Number 66101340901 EAN 8719182059981
Product Details
- Configuration: Two pumps in parallel for high-capacity supply
- Pump Body: Polypropylene
- Valve Housing: Polypropylene
- Valves: Santoprene
- Diaphragm: Santoprene
- Accumulator Tank: 2 liter with internal bladder (also specified as a 2-liter steel, pre-pressurized accumulator tank)
- Filtration: Inline strainer / integrated suction filters to help protect the pumps from debris
- Mounting: Can be mounted vertically or horizontally; also specified as mounted on a base with a stainless steel base
Features
- Compact system designed for higher water demand using two Aqua Jet pressure units connected in parallel
- Low-noise, pulsation-free operation for comfortable onboard use
- Two-stage operation supports larger draw when multiple outlets are opened
- Built-in thermal protection (motor)
- Ignition-protected motor design in accordance with ISO 8846
-
