The Johnson Pump 10-24904-11 F7B-9 engine cooling pump with mechanical seal supports reliable cooling water circulation for Nanni Diesel applications. It is specified with a 12/24 V DC brushless motor (IP67) and ball bearings for durable, continuous operation, and it is suitable for fresh water or water/glycol mixtures up to 60% glycol across a -40°C to +100°C liquid temperature range. The pump is listed with multiple hose connection sizes and is commonly used on Nanni Diesel N4.65 and N4.80 engines and GENSETS V3300.
- Description
- Ask a Question
-

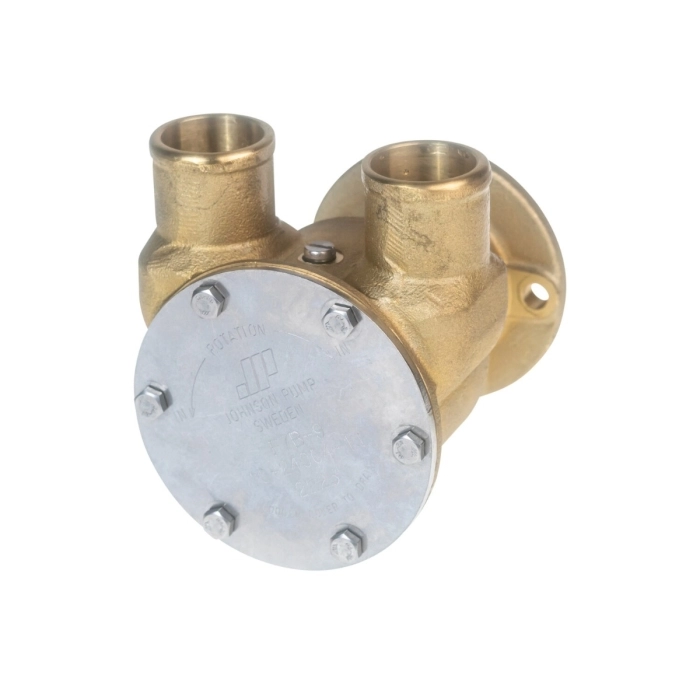

Johnson 10-24904-11 F7B-9 Engine Cooling Pump Unit With Mechanical Seal
The Johnson Pump 10-24904-11 is an OEM engine cooling pump referenced for Nanni Diesel installations. It is described as a dependable, self-priming cooling water impeller pump with a mechanical seal, designed to support consistent engine cooling performance.
Application
- Nanni Diesel N4.65 engines
- Nanni Diesel N4.80 engines
- GENSETS V3300
Compatibility
- Alternative to Johnson Pump Marine 10-24542-01 (previous version)
- Alternative to Johnson Pump Marine 10-24666-01 (previous version)
- Alternative to Johnson Pump Marine 10-24904-01 (OEM)
- Alternative to Johnson Pump Marine 10-24904-11 (Open Market)
- Alternative to Nanni Diesel 970312789 (previous version)
- Alternative to Nanni Diesel 970316374
Technical Specifications
Brand Johnson Pump Part Number 10-24904-11 Model / Size F7B-9 (Size F7) Pump Housing (Listed) PPA Pump Body Material (Listed) Bronze Impeller (Listed) PA12 Impeller Included (Listed) MC97 Shaft Stainless Steel Motor (Listed) 12/24 V DC (brushless), IP67, ball bearings, permanent magnet Duty Suitable for Continuous Operation Flow Medium Water/Glycol Mixture (Max. 60% Glycol), Fresh Water Liquid Temperature Range Min. -40°C, Max. +100°C Max. System Pressure 2.5 bar Hose Connection (Listed) Ø 20 mm (3/4 in) or Ø 38 mm (1-1/4 in) Hose Connection Size (Listed) 32 mm (1-1/4 in) Dry Running Max. 30 minutes Power Consumption Max. 125 W Mounting (Listed) Universal Holder for Flat Surfaces (Included) Mounting Type (Listed) Flange Length 273.5 mm (10.8 in) Width 121 mm (4.8 in) Height 141 mm (5.6 in) Weight (Listed) 3.0 kg (6.6 lb) Shipping Weight (Listed) 2.60 kg Product Portfolio (Listed) Impeller Pumps; Cooling Water Pumps Impeller Hub (Listed) Spline Drive
Product Details
- Mechanical seal (mechanical seal design is specified in the listing)
- Equipped with 1/1 (full) cam, stainless steel cover, and wear plate
- Bronze pump body described for flange mounting
- Drive described as conical mount / shaft end with thread for lock nut
- Drive/shaft end also listed as shaft with key and thread
- Article Number: 66102490411
Features
- Self-priming cooling water impeller pump design (Size F7 / F7B-9)
- Brushless 12/24 V DC motor specification with IP67 protection for robust operation
- Designed for fresh water and water/glycol mixtures up to 60% glycol
Service Kits Referenced
- Impeller Kit: 09-1028BT-1
- Wear Kit: 09-47790-01
- Shaft Kit: 09-47793
- Screw Kit: 09-47553-105
-
