The Johnson Pump 10-13395-04 Aqua Jet WPS 3.5 pressure-water pump delivers 24V performance for small boats and recreational vehicles, providing up to 13 l/min (3.5 GPM) with a 2.8 bar switch-off pressure (listed as 41 PSI and also as 40 PSI). Its five-chamber design helps minimize noise and water pulsations versus conventional diaphragm pumps, and it is described as self-priming up to 2 meters, capable of running dry without damage, and protected by an automatic pressure switch cut-out. Built with Santoprene membranes, EPDM valves, and a PP/PPA housing, it includes 5A fuse protection and multiple BSP-to-hose connection options (snap-in ports), while optional cut-off pressure settings and NPT connections are available upon request; inlet strainer not included.
- Description
- Ask a Question
-

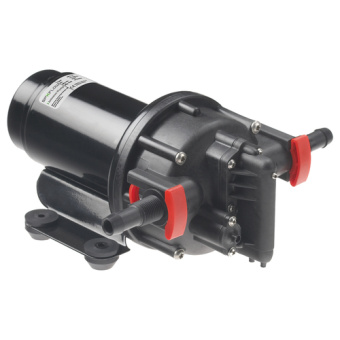

Johnson Pump 10-13395-04 Aqua Jet WPS 3.5 Pressurized Water Pump
The Aqua Jet WPS 3.5 is a 24V pressurized water system pump designed to provide steady onboard water pressure. Its five-chamber construction is intended to reduce noise and water pulsations compared with conventional diaphragm pump designs, supporting more consistent flow for comfort and usability.
Application
- Small boats
- Recreational vehicles
- Pressurized water systems
Technical Specifications
Brand Johnson Pump Model / Series Aqua Jet WPS 3.5 Part Number 10-13395-04 Article Number 66101339504 Product Portfolio Water Pressure Systems Voltage 24 V Motor Power 85 W (also described as 100 W) Max Output 13 l/min (3.5 GPM) Switch-Off Pressure 2.8 bar (listed as 41 PSI and also as 40 PSI) Amperage 3.2 A Fuse 5 A Self-Priming Up to 2 m Dry-Run Capability Runs dry without damage Membranes Santoprene Valves EPDM Housing Material PP/PPA Weight 2 kg Shipping Weight 3.40 kg Dimensions (mm) Length 236.5 mm; Width 210 mm; Height 116 mm Dimensions (cm) Length 23.7 cm; Width 13.1 cm; Height 11.6 cm EAN 1234567890123
Product Details
- Five-chamber design to help minimize noise and water pulsations versus conventional diaphragm pumps
- Automatic pressure switch stops operation at the set switch-off pressure
- Connection options: 3/4" BSP to 1/2" hose, and 1/2" BSP to 3/4" hose
- Included snap-in ports: 2 x 13 mm (1/2") BSP / 19 mm (3/4") hose, and 2 x 9.5 mm (3/8") BSP / 13 mm (1/2") hose
- Inlet strainer: not included
Features
- Designed for reliable performance in pressurized water systems
- 5A fuse protection for safer operation
- Optional cut-off pressure settings available upon request: 2.1 bar (30 PSI) and 1.4 bar (20 PSI)
- NPT connection available upon request
- Recommended setup: use with a buffer tank and a PumProtector inlet filter before the pump inlet
-
