The Flojet T5001114 T-Series air-operated diaphragm pump is a compressed-air driven unit with a delivery rate of 7.6 liters per minute (free discharge, without back pressure) and automatic shutoff at 5.5 bar (80 PSI). It is self-priming up to 3 m and switches off automatically when the tank/bag is empty. Connections are pumped media IN 3/8 inch BP, pumped media OUT 3/8 inch BP, and gas IN 1/4 inch hose; maximum temperature range is 1.1°C to 49°C, dimensions are 15.70 cm (H) x 13.36 cm (W) x 7.35 cm (L), and listed materials include polypropylene, TPE, NBR, and stainless steel with CE and 1935/2004/EC certifications noted.
- Description
- Ask a Question
-

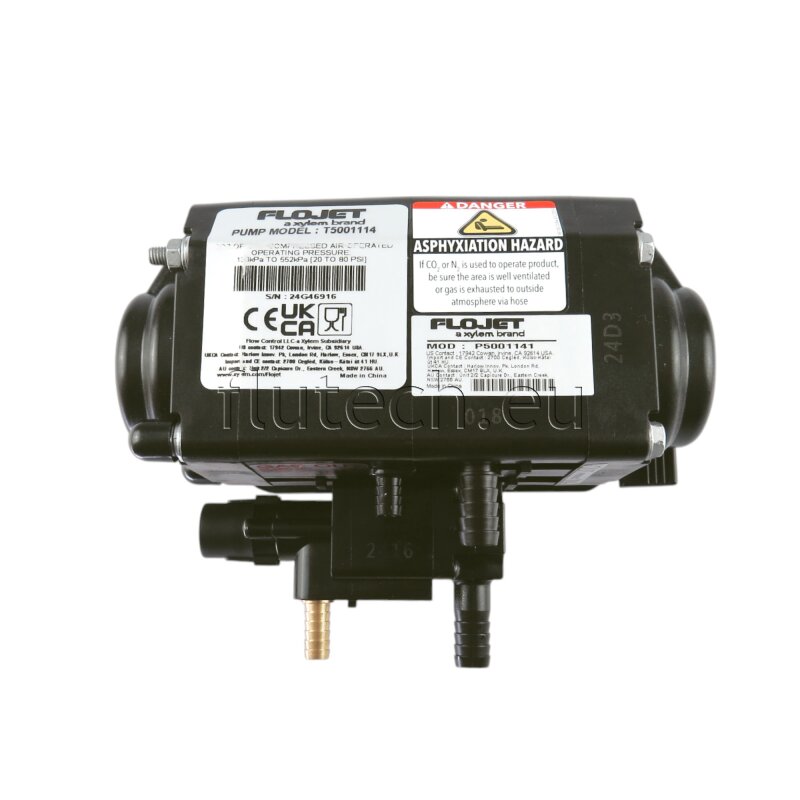

Flojet T-Series Air-Driven Diaphragm Pump (T5001114)
The Flojet T5001114 is a T-Series air-operated diaphragm pump designed for transferring liquids using compressed air. It provides automatic shutoff at the specified pressure and is designed to stop pumping when the tank or bag is empty.
Technical Specifications
Series T-Series Configuration T/E Pump Type Air-operated diaphragm pump Drive Compressed air Delivery Rate 7.6 L/min (free discharge / without back pressure) Automatic Shutoff Pressure 5.5 bar (80 PSI) Self-Priming Up to 3 m Automatic Shutoff (Empty Tank/Bag) Yes Max Temperature Range 1.1°C to 49°C Connections Pumped medium IN: 3/8 inch BP; Pumped medium OUT: 3/8 inch BP; Gas IN: 1/4 inch hose Dimensions (H x W x L) 15.70 cm x 13.36 cm x 7.35 cm Materials Polypropylene, TPE, NBR, stainless steel Certifications CE; 1935/2004/EC
Features
- 7.6 L/min delivery rate at free discharge (without back pressure)
- Automatic shutoff at 5.5 bar (80 PSI)
- Self-priming up to 3 m
- Automatically switches off when the tank/bag is empty
Product Details
If you are unsure about material compatibility between the pump and the pumped liquid, verify compatibility of wetted materials before putting the pump into operation.
-
