The Flojet T5011161 is an air-operated diaphragm pump for Bag-in-Box syrup, juice concentrates, tea, wine, and liquor, powered by CO2 or compressed air, fully automatic with external shutoff, high suction to minimize residual, quick disconnect fittings for easy installation, operating only during dispensing, and compliant with EU Food Contact Regulation (EC 1935/2004).
- Description
- Ask a Question
-

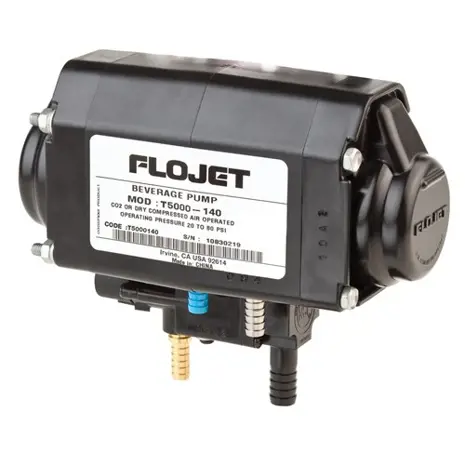

Flojet T5011161 - T5000 Series Air Operated Diaphragm Pump
The Flojet T5011161 is an air-operated diaphragm pump for dispensing Bag-in-Box (BIB) syrups, juice concentrates without pulp, teas, wines, and liquors. It is gas (CO2) or air powered and maintains constant dispensing pressure. The pump automatically shuts off when the bag is empty and restarts with a new full bag. High suction capability ensures minimal residual product. Quick disconnection fittings allow easy installation, and the pump operates only when beverage is being dispensed.
Technical Data
Pump Type Bag-in-Box (BIB) Syrup Pump Power Source Gas (CO2) / Air Driven Operation Fully Automatic, External Auto Shut Off Suction Capability High, empties syrup down to minimum residual Exhaust Port 1/4" (6.35mm) barbed CO2 Compliance EU Food Contact Regulation (EC) No. 1935/2004 Valve Output Four x 3.0 oz (89 ml) at 0.5 oz/sec or Two x 4.5 oz (133 ml) at 0.75 oz/sec
Brand: Flojet
Article: T5011161 -
