The Flojet R3B01342A Triplex Series Industrial Diaphragm Pump is a 12V or 24V compact three-chamber pump delivering up to 7.6 LPM at 4.1 bar, intermittent duty, with permanent magnet TENV motor, glass-filled polypropylene head, Santoprene diaphragm, Viton or EPDM check valves, designed for spraying, transferring, and dispensing in tight spaces.
- Description
- Ask a Question
-

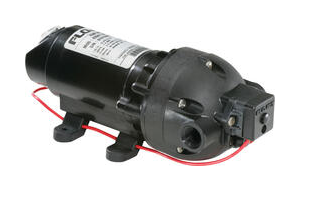

Flojet R3B01342A - Triplex Series Industrial Diaphragm Pump 24VDC 1.4 GPM (5.3 LPM)
The Flojet R3B01342A Triplex Series compact pump features a three-chamber diaphragm design for spraying, transferring and dispensing. Designed for space-restricted installations with sealed pressure switch and motor.
Design And Construction
Motor-operated three-chamber diaphragm pump with permanent magnet DC TENV motor. Glass-filled polypropylene pump head with Santoprene diaphragm and Viton or EPDM check valves.
Performance
Maximum flow rate up to 7.6 LPM (2.0 GPM) with maximum pressure of 4.1 bar (60 psi). Intermittent duty operation with liquid temperature range from 4°C to 60°C.
Technical Data
Voltage 12V DC or 24V DC Max Flow Rate 7.6 LPM (2.0 GPM) Max Pressure 4.1 bar (60 psi) Port Size 3/8″ NPTF Duty Cycle Intermittent Liquid Temperature 4°C to 60°C Pump Head Glass-Filled Polypropylene Diaphragm Santoprene Check Valves Viton or EPDM Weight 1.5 kg Dimensions 227 mm x 101 mm x 93 mm Certifications CE, NSF Components
Brand: Flojet
Article: R3B01342A -
