ID
1353809
$ 504.26
1-2 weeks delivery time
-
+
The Flojet Q352F-16N7-2P Versijet 4-chamber diaphragm pump is a 24V 13.2 LPM industrial pump for liquid transfer, spraying, cooling, circulation, filtration, and dispensing, self-priming up to 8 ft, running dry safe, with Santoprene diaphragm, FKM valves, glass-filled polypropylene housing, and two 1/2″ hosebarb fittings.
- Description
- Ask a Question
-

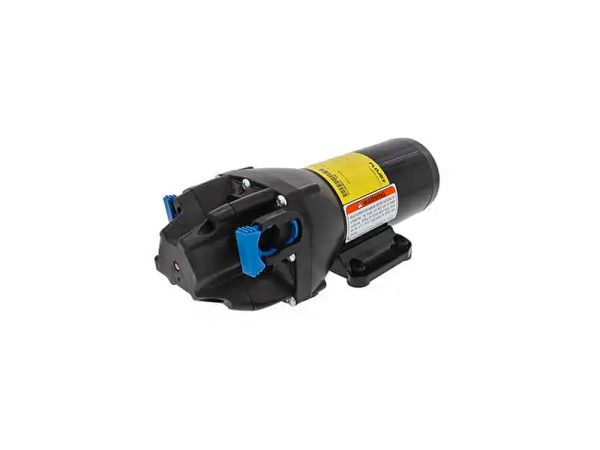

Flojet Q352F-16N7-2P - Versijet Diaphragm Pump 1/2 Inch 24V 13.2 LPM 4 Chamber
The Flojet Versijet Q352F-16N7-2P is a 24V industrial 4 chamber diaphragm pump for liquid transfer, spraying, cooling, circulation, filtration and dispensing. It delivers 3.5 GPM (13.2 LPM) at pressures up to 50 PSI (3.4 bar).
Performance
Self-priming up to 8 ft and capable of running dry without damage. Operates within 18 - 27.2 VDC and draws up to 5.3A. Suitable for fluid temperatures from 0 - 60°C.
Construction
Manufactured with Santoprene diaphragm, FKM valves and seals, and glass-filled polypropylene housing. Supplied with two 1/2″ (13 mm) straight hosebarb fittings.
Technical Data
Voltage 24V (18 - 27.2 VDC) Max Current 5.3A Flow Rate 13.2 LPM (3.5 GPM) Max Pressure 50 PSI (3.4 bar) Self Priming Up to 8 ft Temperature Range 0 - 60°C Diaphragm Santoprene Valves And Seals FKM Housing Material Glass-Filled Polypropylene Porting 2 x 1/2″ (13 mm) Straight Hosebarb
Brand: Flojet
Article: Q352F-16N7-2P -
